FKR3C64X-H
LED RED CLEAR RND T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

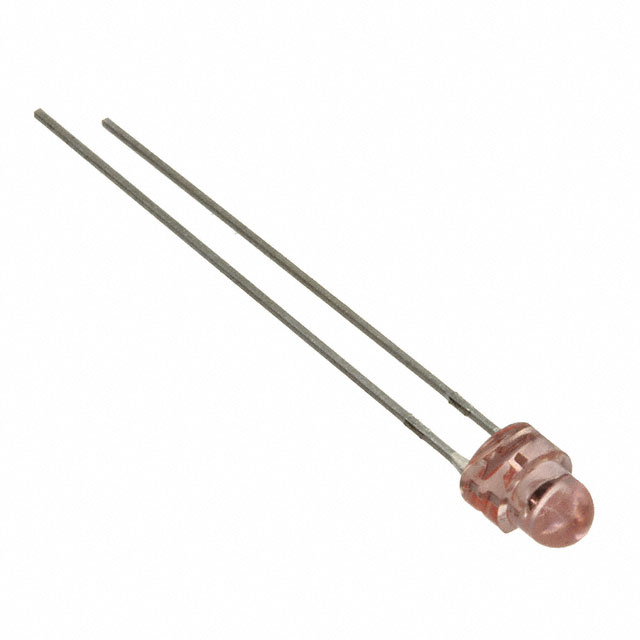

Stanley Electric Co FKR3C64X-H is a red, clear lens, through-hole mounted LED with a dominant wavelength of 625nm and peak wavelength of 635nm. This discrete component operates with a typical forward voltage of 2.2V at a test current of 20mA, achieving a luminous intensity of 1000mcd. The LED features a round, domed top lens with a diameter of 3.10mm, housed in a radial package with a maximum height of 5.60mm and a diameter of 3.85mm. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 3.85mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 1000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 5.60mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | 625nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3.10mm Dia |
