FKR3863X
LED RED CLEAR RND T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

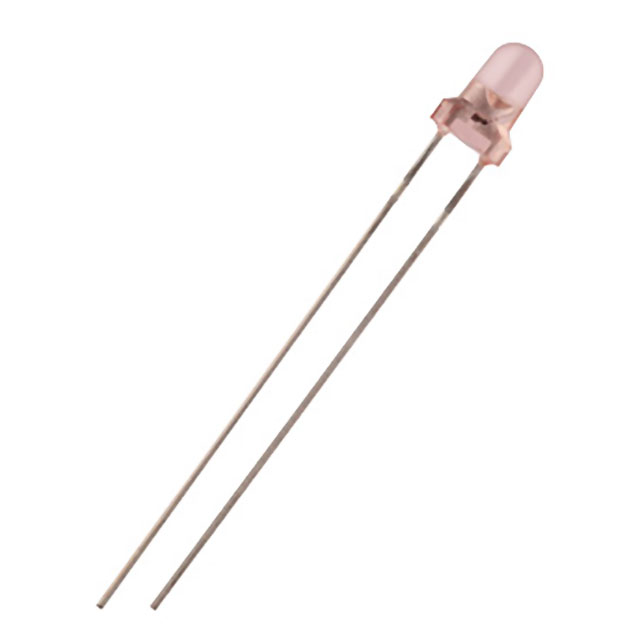

Stanley Electric Co FKR3863X is a red, through-hole mounted LED designed for general indication. This discrete component features a clear, round lens with a domed top, measuring 3.10mm in diameter. It operates with a typical forward voltage of 2.2V and a test current of 20mA, achieving a luminous intensity of 2800mcd at 625nm dominant wavelength. The LED has a peak wavelength of 635nm and a package diameter of 3.85mm, with a maximum height of 6.40mm. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 3.85mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 2800mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 6.40mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | 625nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3.10mm Dia |
