FHY3C64X-H
LED YELLOW CLEAR RND T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

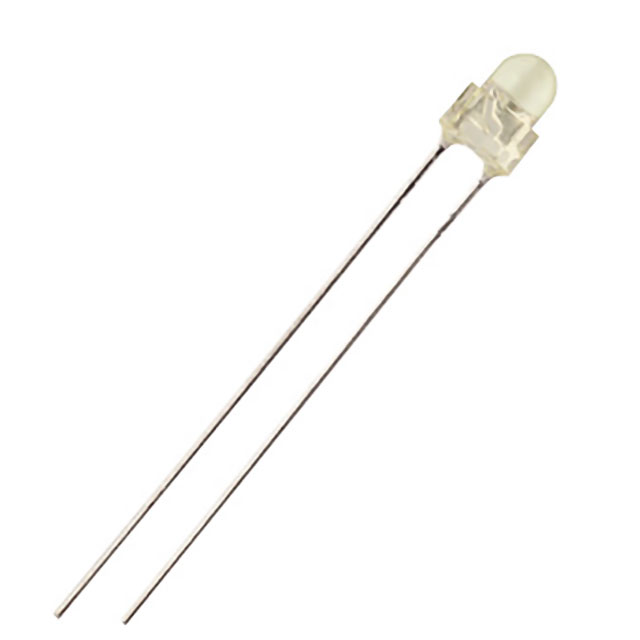

Stanley Electric Co FHY3C64X-H is a through-hole mounted yellow LED designed for indication applications. This discrete component emits a dominant wavelength of 588nm with a peak wavelength of 592nm, providing a distinct yellow hue. It features a clear, diffused lens with a domed top, measuring 3.10mm in diameter, and a typical forward voltage of 1.9V at a test current of 10mA. The LED offers a millicandela rating of 350mcd, ensuring clear visibility. Its radial package and standard configuration make it suitable for a wide range of electronic assemblies. This component finds application in industrial control, consumer electronics, and signaling systems where reliable visual indication is critical.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Yellow |
| Size / Dimension | 3.85mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 350mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | Yellow |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 5.90mm |
| Wavelength - Peak | 592nm |
| Wavelength - Dominant | 588nm |
| Supplier Device Package | - |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3.10mm Dia |
