FHA3C64X-H
LED ORANGE CLEAR 3MM T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

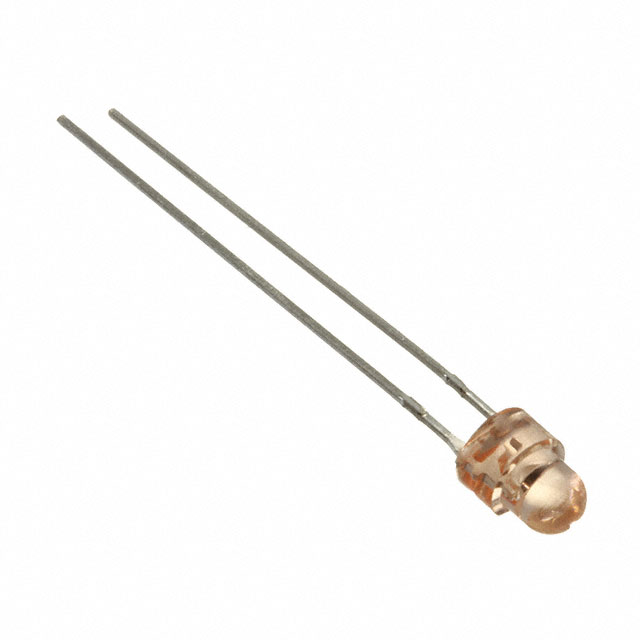

Stanley Electric Co. FHA3C64X-H is an orange, clear lens, through-hole mounted LED designed for indication applications. This discrete component operates with a typical forward voltage of 1.9V and a test current of 10mA, achieving a luminous intensity of 350mcd. The dominant wavelength is 603nm, with a peak wavelength of 608nm, providing a distinct orange hue. The LED features a standard configuration with a 3mm radial package and a domed top lens measuring 3.10mm in diameter. This component is suitable for use in automotive and industrial control systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Orange |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 350mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | Orange |
| Current - Test | 10mA |
| Viewing Angle | - |
| Height (Max) | 3.30mm |
| Wavelength - Peak | 608nm |
| Wavelength - Dominant | 603nm |
| Supplier Device Package | 3mm |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3.10mm Dia |
