EFY5366X
LED YELLOW CLEAR 5MM ROUND T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

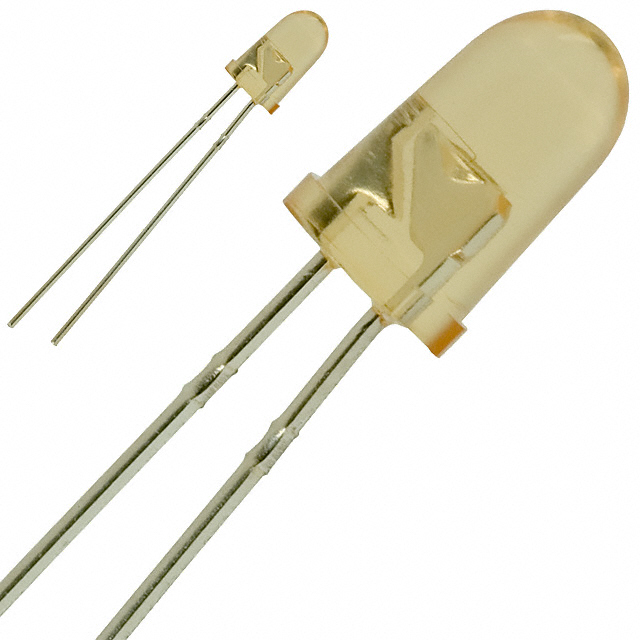

Stanley Electric Co. EFY5366X is a through-hole, 5mm radial LED, designed for clear indication. This yellow LED emits light at a dominant wavelength of 590nm and a peak wavelength of 592nm, with a typical forward voltage of 1.9V at 20mA test current. It offers a luminous intensity of 4000mcd and a narrow viewing angle of 10°, ensuring focused light output. The component features a yellow lens with a domed top, providing a clear and distinct visual indicator. This discrete LED is suitable for applications in industrial automation, automotive systems, and general electronic instrumentation where reliable visual feedback is critical. The EFY5366X is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Yellow |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 4000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 10° |
| Height (Max) | 8.80mm |
| Wavelength - Peak | 592nm |
| Wavelength - Dominant | 590nm |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
