EFY5365S
LED YELLOW CLEAR 5MM ROUND T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

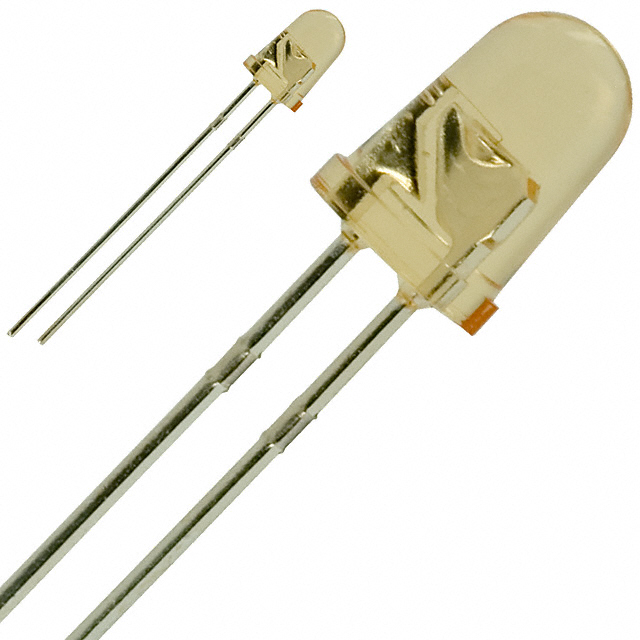

Stanley Electric Co EFY5365S is a 5mm, through-hole mounted yellow LED designed for general indication purposes. This discrete component emits light at a dominant wavelength of 590nm, with a peak wavelength of 592nm. The clear, domed top lens provides a 45° viewing angle and a millicandela rating of 1000mcd at a typical forward voltage of 1.9V and test current of 20mA. This component is suitable for applications in industrial automation, consumer electronics, and automotive systems. The EFY5365S is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Yellow |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 45° |
| Height (Max) | 7.80mm |
| Wavelength - Peak | 592nm |
| Wavelength - Dominant | 590nm |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
