EFR5365S
LED RED CLEAR 5MM ROUND T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

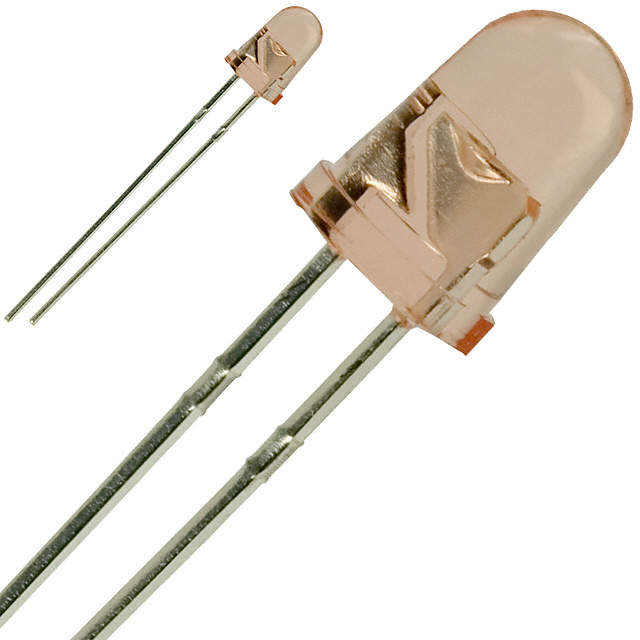

Stanley Electric Co. EFR5365S is a red, through-hole mounted LED with a 5mm clear, domed top lens. This discrete indicator component operates at a typical forward voltage of 1.9V and a test current of 20mA, achieving a luminous intensity of 880mcd. The dominant wavelength is 626nm, with a peak wavelength of 635nm, and a viewing angle of 45°. This component is supplied in bulk packaging and is suitable for various industrial applications requiring reliable visual indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 880mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 45° |
| Height (Max) | 7.80mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | 626nm |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
