EFA5365S
LED ORANGE CLEAR 5MM ROUND T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

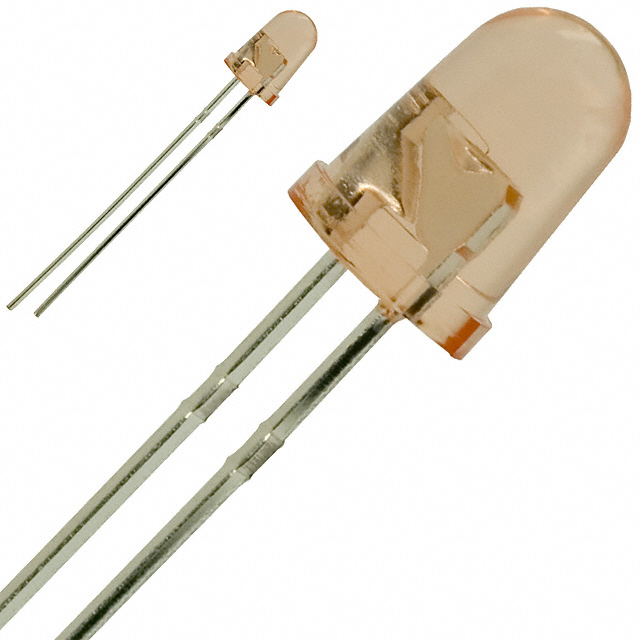

Stanley Electric Co. EFA5365S is a discrete, through-hole mounted orange LED. This component features a 5mm, clear, domed lens with a standard configuration, emitting a dominant wavelength of 605nm and a peak wavelength of 609nm. The forward voltage (typ) is 1.9V, and it is rated for a test current of 20mA, producing an luminous intensity of 1160mcd. This LED is suitable for indication applications across various industrial sectors. The radial package is supplied in bulk.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Orange |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1160mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | Orange |
| Current - Test | 20mA |
| Viewing Angle | 45° |
| Height (Max) | 7.80mm |
| Wavelength - Peak | 609nm |
| Wavelength - Dominant | 605nm |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
