EFA5364X
LED ORANGE CLEAR 5MM ROUND T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

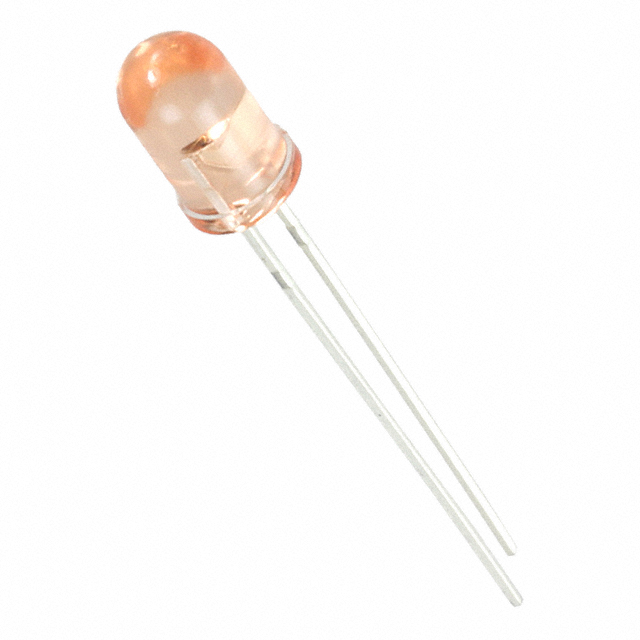

Stanley Electric Co. EFA5364X is a through-hole mounted, 5mm (T-1 3/4) orange LED. This discrete component features a clear, domed lens for a round optical output and a 35° viewing angle. Designed for indication applications, it operates with a typical forward voltage of 1.9V and a forward current of 20mA, achieving a millicandela rating of 1560mcd. The dominant wavelength is 605nm, with a peak wavelength of 609nm. This component is commonly utilized in industrial automation, consumer electronics, and automotive signaling systems. The EFA5364X is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Orange |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1560mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | Orange |
| Current - Test | 20mA |
| Viewing Angle | 35° |
| Height (Max) | 8.80mm |
| Wavelength - Peak | 609nm |
| Wavelength - Dominant | 605nm |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
