DC5306X
LED BLUE-GRN CLEAR 5MM ROUND T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

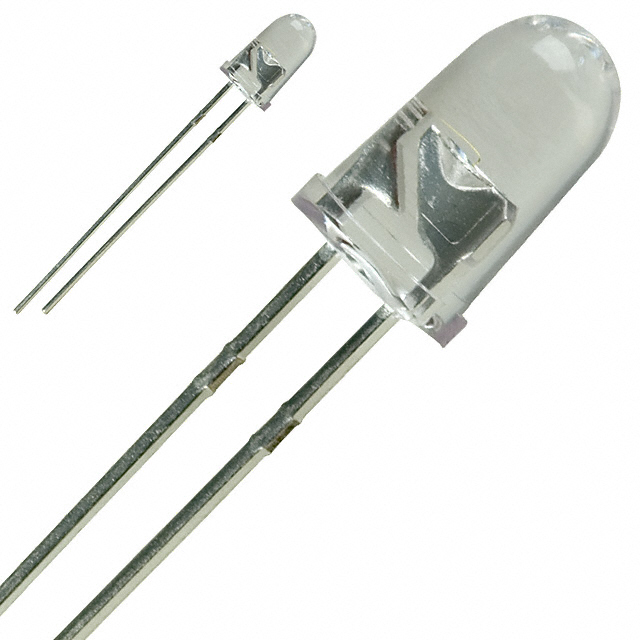

Stanley Electric Co. Blue-Green 5mm Radial LED, part number DC5306X, offers clear, domed-top illumination with a 10° viewing angle. This through-hole component features a dominant wavelength of 505nm and a typical forward voltage of 3.5V, tested at 20mA. The LED provides a significant 2400mcd luminous intensity, making it suitable for indication applications in industrial automation, consumer electronics, and medical equipment. The lens color is colorless, ensuring consistent color output from the blue-green die. Packaged in bulk, this component is designed for reliable performance in demanding environments.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Blue-Green |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2400mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 10° |
| Height (Max) | 8.80mm |
| Wavelength - Peak | 502nm |
| Wavelength - Dominant | 505nm |
| Supplier Device Package | 5mm Round |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
