DB3804X
LED BLUE CLEAR 3MM T/HManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

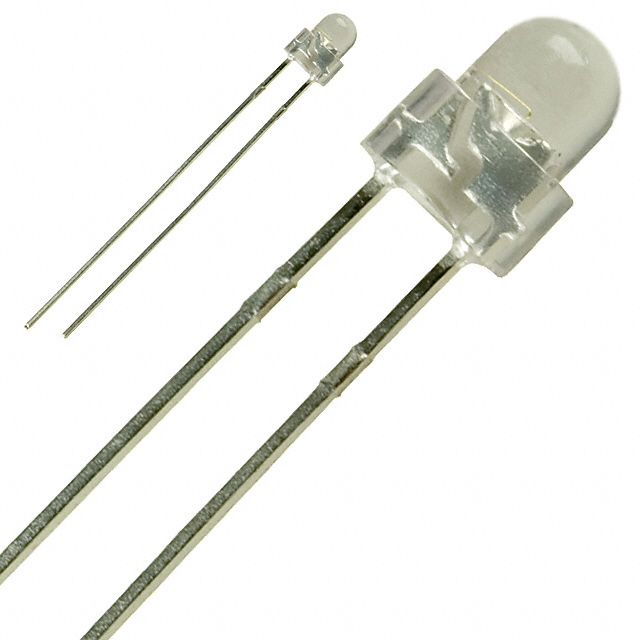

Stanley Electric Co. DB3804X is a 3mm through-hole, clear lens, domed top blue LED with a 470nm dominant wavelength and 467nm peak wavelength. This discrete LED offers a typical forward voltage of 3.5V and a 20mA test current, producing 120mcd luminous intensity with a 50° viewing angle. Designed for robust indication applications, its colorless lens and standard configuration are suitable for use in industrial control systems, consumer electronics, and automotive lighting. The radial package is supplied in bulk.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 120mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 50° |
| Height (Max) | 5.40mm |
| Wavelength - Peak | 467nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | 3mm |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
