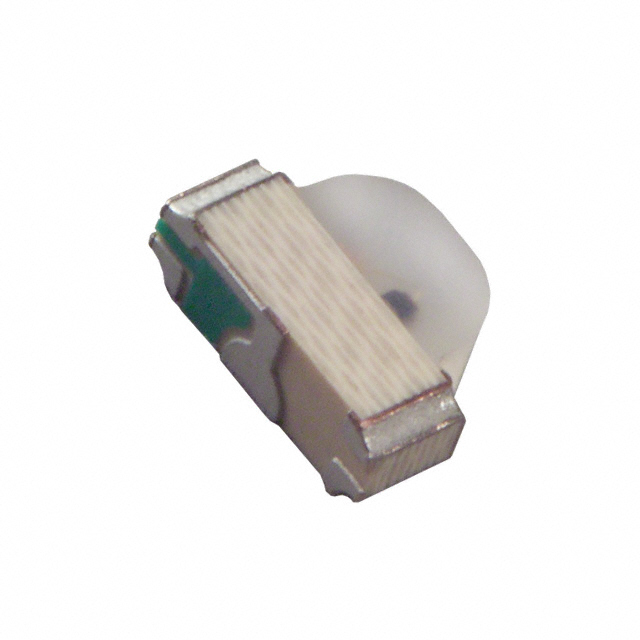

BRPY1211F-TR
LED GREEN/RED DIFFUSED 2SMD R/AManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More
The Stanley Electric Co. BRPY1211F-TR is a 2-SMD, no lead LED indicator featuring both green and red light emission. This component utilizes a common anode configuration and operates with a typical forward voltage of 2.1V for green and 1.7V for red, at a test current of 20mA for both colors. The diffused lens provides a wide viewing angle, approximately 148°/140° for green and 149°/143° for red, with dominant wavelengths of 572nm (green) and 647nm (red). The LED's dimensions are 3.00mm L x 2.00mm W with a maximum height of 1.15mm. This device is supplied in tape and reel packaging, suitable for surface mount, right-angle applications. It finds utility in industrial control panels, automotive dashboards, and consumer electronics for status indication.
Additional Information
Series: 1211FRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Green, Red |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 8.8mcd Green, 17.6mcd Red |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.7V Red |
| Lens Color | White |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 148°, 140° Green, 149°, 143° Red |
| Height (Max) | 1.15mm |
| Wavelength - Peak | 570nm Green, 660nm Red |
| Wavelength - Dominant | 572nm Green, 647nm Red |
| Supplier Device Package | 2-SMD |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
