BRPY1204W-TR
LED GREEN/RED CLEAR SMDManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More

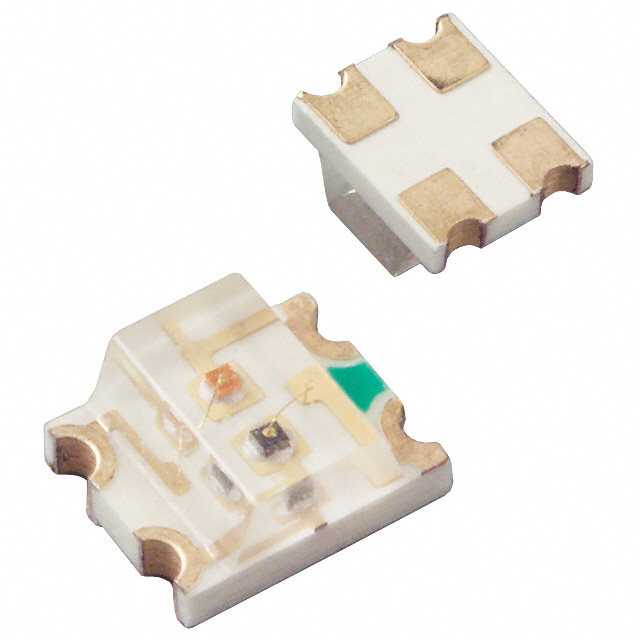

Stanley Electric Co BRPY1204W-TR is a dual-color LED component from the 1204W series, featuring independent Green and Red emitters. This 4-SMD, No Lead device is supplied on tape and reel. The Green LED exhibits a dominant wavelength of 572nm (peak 570nm) and a typical forward voltage of 2.1V at 20mA test current, producing 24mcd luminous intensity. The Red LED operates at a typical forward voltage of 1.7V at 20mA test current, with a dominant wavelength of 647nm (peak 660nm) and 33.6mcd luminous intensity. The component measures 3.00mm L x 2.50mm W with a maximum height of 1.90mm. It features a colorless, rectangular lens with a flat top measuring 1.80mm x 2.50mm, offering clear transparency. Viewing angles are approximately 100° and 88° for Green, and 80° and 80° for Red. This discrete LED is suitable for indication purposes across various industrial and consumer electronics applications.
Additional Information
Series: 1204WRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Color | Green, Red |
| Size / Dimension | 3.00mm L x 2.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 24mcd Green, 33.6mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.7V Red |
| Lens Color | Colorless |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 100°, 88° Green, 80°, 80° Red |
| Height (Max) | 1.90mm |
| Wavelength - Peak | 570nm Green, 660nm Red |
| Wavelength - Dominant | 572nm Green, 647nm Red |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.80mm x 2.50mm |
Request a Quote
Clients Also Buy

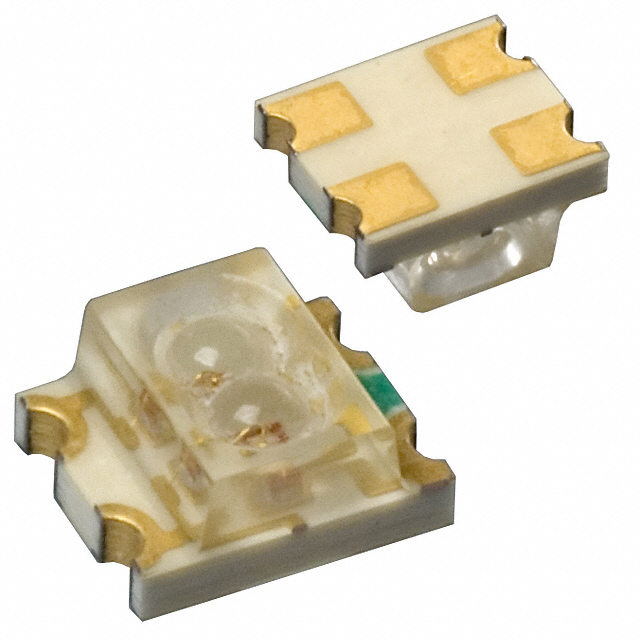

AAPY1204W-TR
