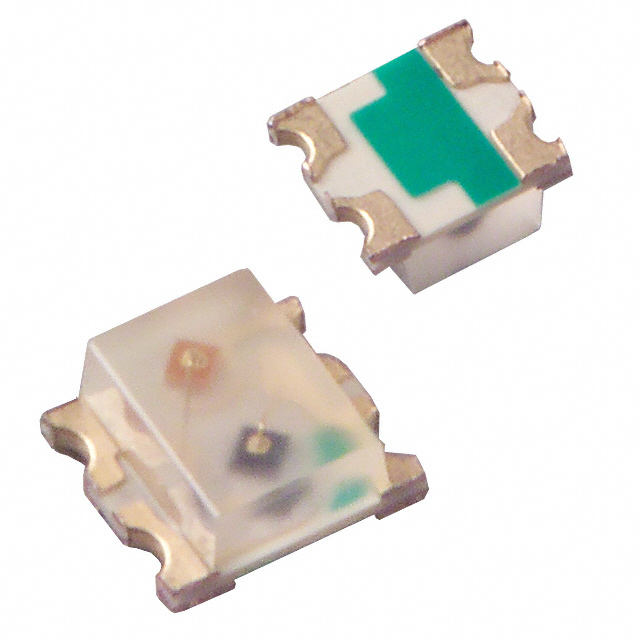

BRBG1211C-TR
LED GREEN/RED DIFFUSED SMDManufacturer: Stanley Electric Co
Categories: LED Indication - Discrete
Quality Control: Learn More
The Stanley Electric Co. 1211C series offers a dual-color, diffused green and red LED in a compact 0606 (1616 Metric) SMD package. This discrete indicator component features independent control for its 558nm green and 647nm red emitters. Typical forward voltage is 2.1V for green and 1.7V for red, with a test current of 20mA for both. The diffused lens provides a wide viewing angle, approximately 168° and 139° for green, and 150° and 140° for red, with a millicandela rating of 2.4mcd (green) and 11.7mcd (red) at 20mA. With dimensions of 1.60mm L x 1.50mm W and a maximum height of 0.80mm, this component is suitable for surface mounting in applications requiring compact, multi-color status indication across various industries. It is supplied on tape and reel for automated assembly.
Additional Information
Series: 1211CRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0606 (1616 Metric) |
| Color | Green, Red |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2.4mcd Green, 11.7mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.7V Red |
| Lens Color | White |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 168°, 139° Green, 150°, 140°, Red |
| Height (Max) | 0.80mm |
| Wavelength - Peak | 555nm Green, 660nm Red |
| Wavelength - Dominant | 558nm Green, 647nm Red |
| Supplier Device Package | - |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.50mm |
