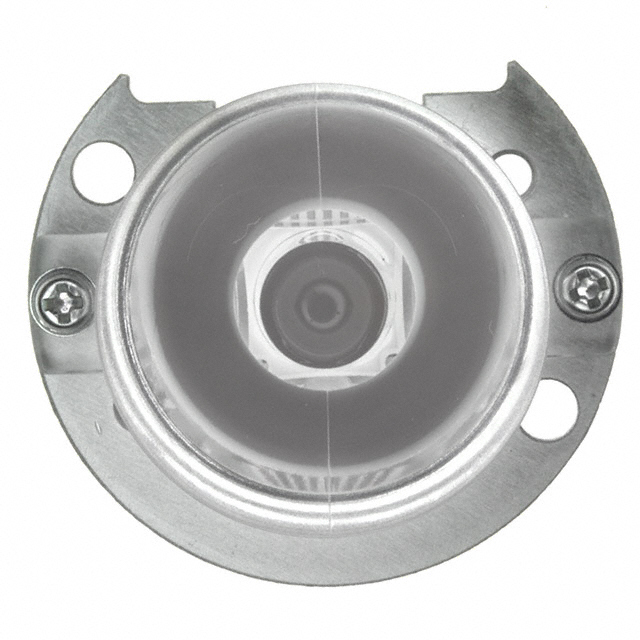

SIW3121N
LED MOD 3W-TYPE WM WH RND 3300KManufacturer: Stanley Electric Co
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Stanley Electric Co. SIW3121N is a 3W-Type LED module featuring a warm white, round emitter with a correlated color temperature of 3300K. This component is designed for high-efficiency lighting applications, delivering 70 lumens at a typical forward voltage of 21V and a maximum current of 150mA. The module achieves a luminous efficacy of 22 lm/W under test conditions. Its flat lens and 25° viewing angle ensure focused light distribution. The SIW3121N is commonly integrated into general lighting, architectural lighting, and display illumination systems. Packaged in trays, this LED module from Stanley Electric Co. offers a compact 25mm diameter and 20mm height for streamlined integration into various luminaire designs.
Additional Information
Series: 3W-TypeRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 25.00mm Dia |
| Type | LED Module |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 21V |
| Height | 20.00mm |
| Current - Test | 150mA |
| Viewing Angle | 25° |
| Lens Type | Flat |
| Current - Max | 150mA |
| Lumens/Watt @ Current - Test | 22 lm/W |
| CCT (K) | 3300K |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | - |
| Luminous Flux @ Current/Temperature | 70lm (Typ) |
Request a Quote
Clients Also Buy

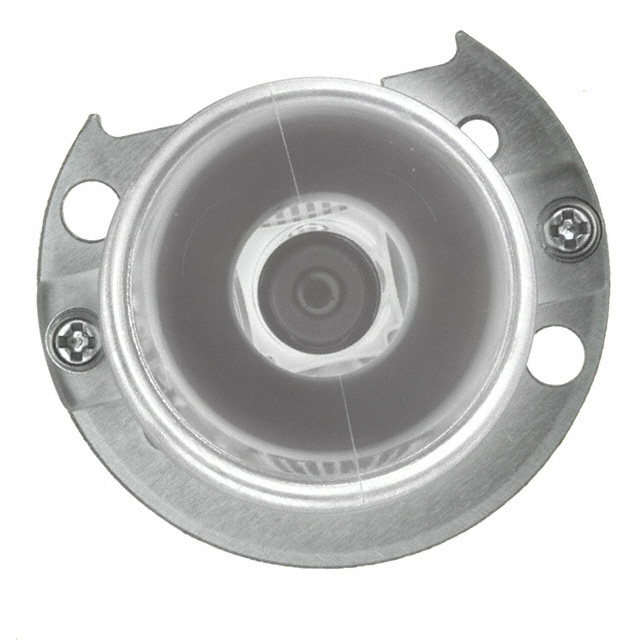

SIN3121N
LED MOD 3W-TYPE WHT ROUND 5000K

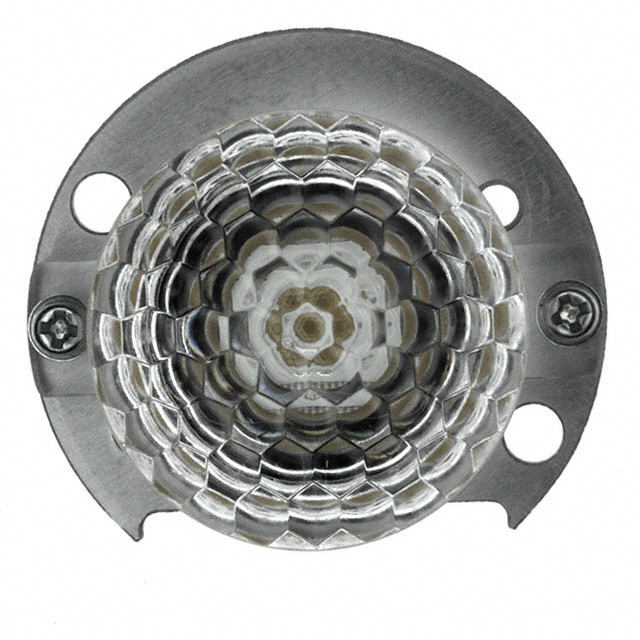

SIN3141N
LED MOD 3W-TYPE WHT ROUND 5000K

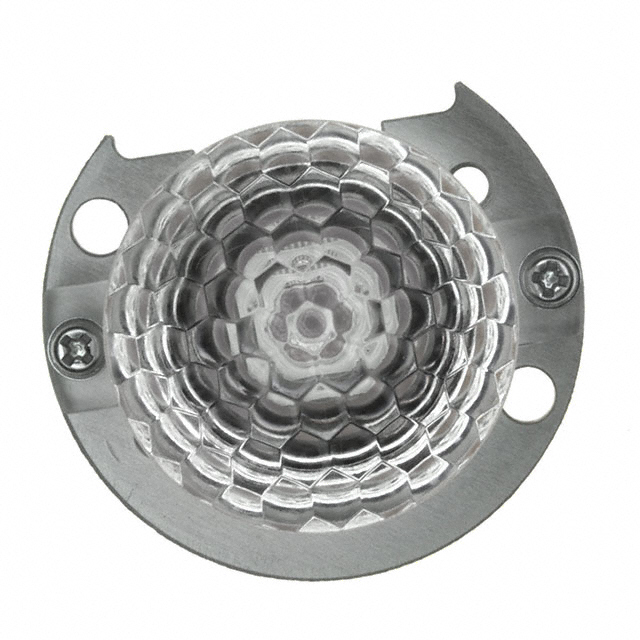

SIW3141N
