NSR161B
DISP 7SEG 0.6"" OV/FL RED 10DIPManufacturer: Stanley Electric Co
Categories: LED Character and Numeric
Quality Control: Learn More

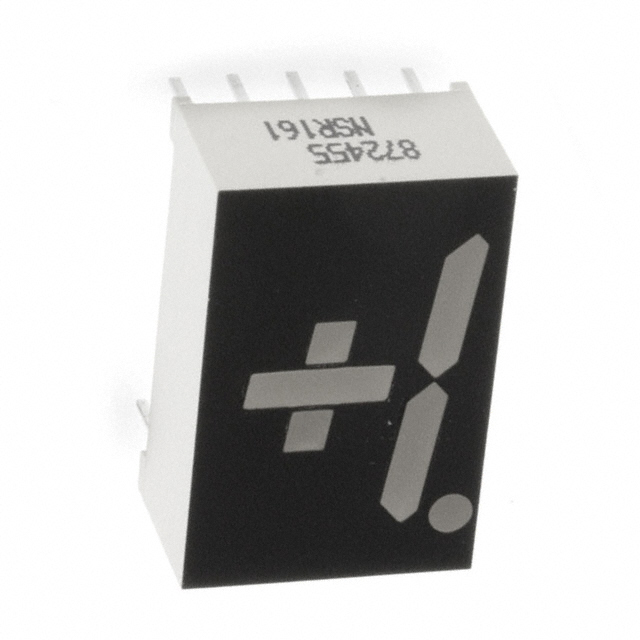

Stanley Electric Co. NSR161B is a red 7-segment numeric display module. This component features a 0.60-inch (15.24mm) character height and provides +/-1 (overflow) indication. Designed for universal common pin configuration, it operates with a typical forward voltage of 1.7V and a test current of 20mA, yielding a typical millicandela rating of 12mcd. The display has a peak wavelength of 660nm and a maximum power dissipation of 60mW. Its dimensions are 0.748 inches H x 0.492 inches W x 0.315 inches D (19.00mm x 12.50mm x 8.00mm). The component is housed in a 10-DIP (0.600", 15.24mm) package. This display is suitable for applications in industrial control, instrumentation, and consumer electronics requiring clear numeric readouts.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.748"" H x 0.492"" W x 0.315"" D (19.00mm x 12.50mm x 8.00mm) |
| Number of Characters | +/-1 (overflow) |
| Millicandela Rating | 12mcd |
| Common Pin | Universal |
| Digit/Alpha Size | 0.60"" (15.24mm) |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 60mW |
