NARG105
DISPLAY 7SEG 1"" SGL GN/RED 14DIPManufacturer: Stanley Electric Co
Categories: LED Character and Numeric
Quality Control: Learn More

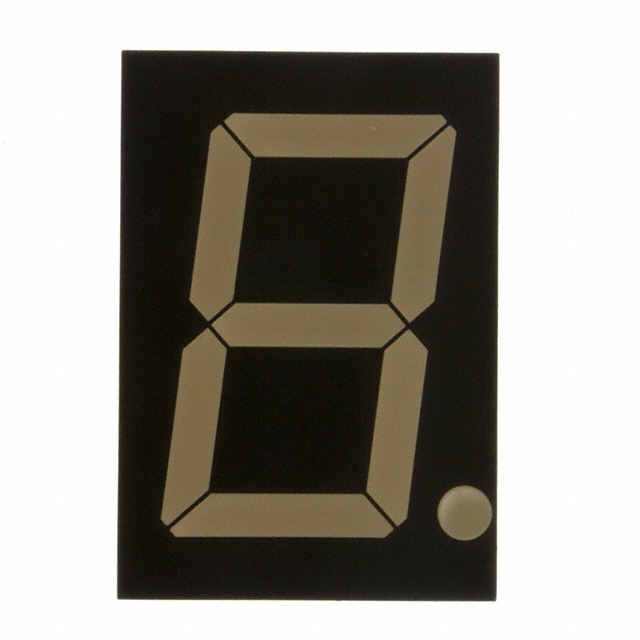

Stanley Electric Co NARG105 is a single-digit, 7-segment numeric display module. This component features a 1.00-inch character height and combines both green (570nm peak wavelength) and red (660nm peak wavelength) LED segments. It operates with a common anode configuration, requiring typical forward voltages of 4V for green and 3.4V for red, with a test current of 10mA. The maximum power dissipation is rated at 96mW for green and 80mW for red. Measuring 1.299 inches high by 0.898 inches wide by 0.354 inches deep, the NARG105 is housed in a 14-DIP package. This display is suitable for applications in industrial instrumentation, automotive dashboards, and consumer electronics requiring clear, multi-color numeric indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-DIP |
| Color | Green, Red |
| Display Type | 7-Segment |
| Size / Dimension | 1.299"" H x 0.898"" W x 0.354"" D (33.00mm x 22.80mm x 9.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 4mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 1.00"" (25.40mm) |
| Voltage - Forward (Vf) (Typ) | 4V, 3.4V |
| Current - Test | 10mA |
| Wavelength - Peak | 570nm, 660nm |
| Power Dissipation (Max) | 96mW, 80mW |
