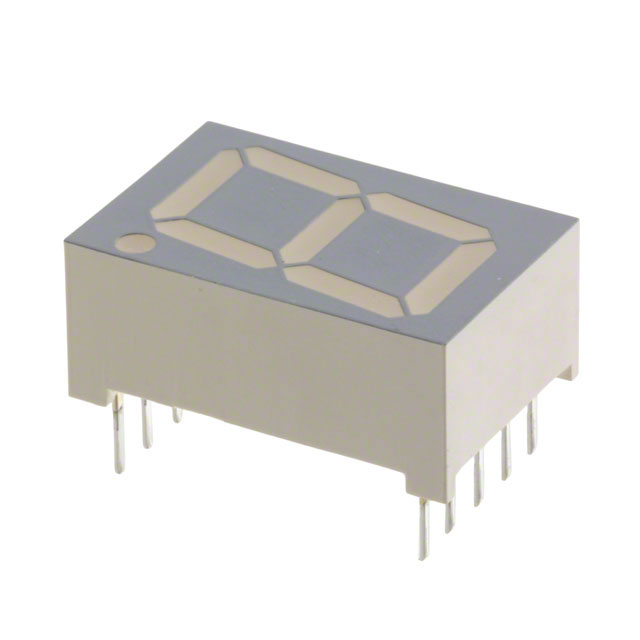

NAR163B
DISPLAY 7-SEG 0.6"" SGL RED 10DIPManufacturer: Stanley Electric Co
Categories: LED Character and Numeric
Quality Control: Learn More
Stanley Electric Co NAR163B is a single-digit, 7-segment numeric display. This component features a 0.60-inch character height (15.24mm) and operates with a typical forward voltage of 1.7V at 20mA. The red LED display exhibits a peak wavelength of 660nm and a millicandela rating of 12mcd. It utilizes a common anode configuration and is housed in a 10-DIP package with a 0.600-inch (15.24mm) pin spacing. The overall dimensions of the module are 0.748 inches high by 0.492 inches wide by 0.315 inches deep (19.00mm x 12.50mm x 8.00mm). This display module is suitable for applications in industrial control, instrumentation, and consumer electronics where clear numeric indication is required. The maximum power dissipation is 60mW. Packaging is provided in Bulk.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.748"" H x 0.492"" W x 0.315"" D (19.00mm x 12.50mm x 8.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 12mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.60"" (15.24mm) |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 60mW |
