NAR161B
DISPLAY 7-SEG 0.6"" SGL RED 10DIPManufacturer: Stanley Electric Co
Categories: LED Character and Numeric
Quality Control: Learn More

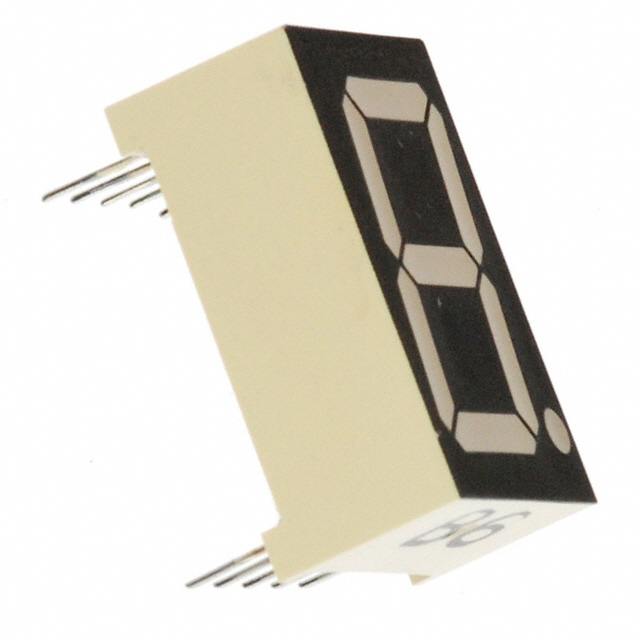

Stanley Electric Co NAR161B is a single-digit, 0.60-inch 7-segment display module. This red LED component features a common anode configuration and operates with a typical forward voltage of 1.7V at 20mA test current, delivering 12mcd luminous intensity. The display is housed in a 10-DIP package with a 0.600-inch pin pitch, measuring 0.748" H x 0.492" W x 0.315" D. Its peak emission wavelength is 660nm, and it has a maximum power dissipation of 60mW. This component is suitable for applications in industrial control, instrumentation, and point-of-sale systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.748"" H x 0.492"" W x 0.315"" D (19.00mm x 12.50mm x 8.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 12mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.60"" (15.24mm) |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 60mW |
