NAR141B
DISPLAY 7SEG 0.43"" SGL RED 14DIPManufacturer: Stanley Electric Co
Categories: LED Character and Numeric
Quality Control: Learn More

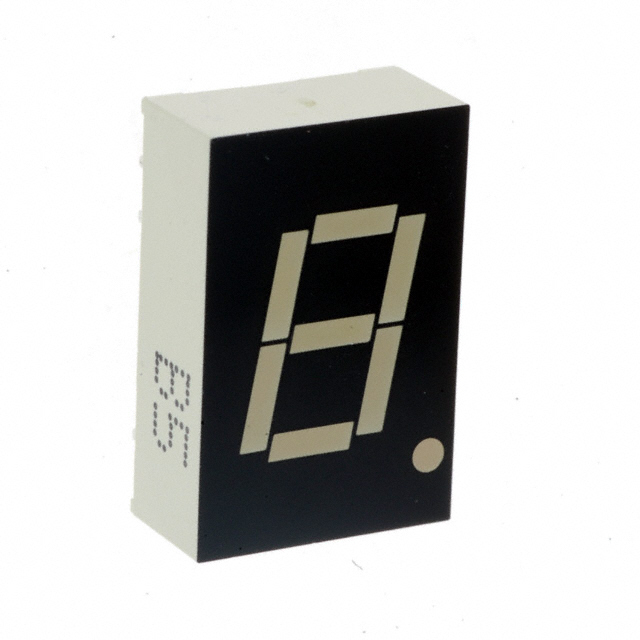

Stanley Electric Co NAR141B is a single-digit, 7-segment numeric display module. This component features a common anode configuration and emits a red light with a typical forward voltage of 1.7V at 20mA. The character height is 0.43 inches (10.92mm), and the display measures 0.748 inches high by 0.492 inches wide by 0.248 inches deep (19.00mm x 12.50mm x 6.30mm). The module is housed in a 14-DIP package and has a peak wavelength of 660nm. Its low power dissipation of 60mW makes it suitable for various applications including industrial control panels, medical equipment, and point-of-sale terminals.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-DIP |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.748"" H x 0.492"" W x 0.248"" D (19.00mm x 12.50mm x 6.30mm) |
| Number of Characters | 1 |
| Millicandela Rating | 8mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.43"" (10.92mm) |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 60mW |
