NAR131SB
DISPLAY 7SEG 0.31"" SGL RED 10DIPManufacturer: Stanley Electric Co
Categories: LED Character and Numeric
Quality Control: Learn More

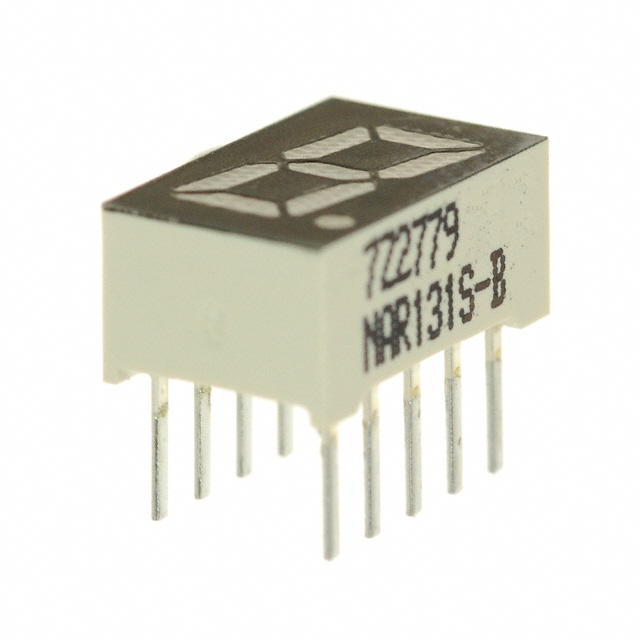

Stanley Electric Co NAR131SB is a single-digit, red 7-segment display module with a character height of 0.31 inches (8.00mm). This 10-DIP package component features a common anode configuration and operates with a typical forward voltage of 1.7V and a test current of 10mA. It offers a peak wavelength of 660nm and a millicandela rating of 2.8mcd. The module's dimensions are 0.433 inches (11.00mm) high by 0.276 inches (7.00mm) wide by 0.197 inches (5.00mm) deep, with a 10-DIP (0.209", 5.30mm) package. This component finds application in various industrial automation, instrumentation, and consumer electronics sectors requiring clear numeric indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.209"", 5.30mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.433"" H x 0.276"" W x 0.197"" D (11.00mm x 7.00mm x 5.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 2.8mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.31"" (8.00mm) |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Current - Test | 10mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 40mW |
