NAR105-B
DISPLAY 7-SEG 1"" SGL RED 14DIPManufacturer: Stanley Electric Co
Categories: LED Character and Numeric
Quality Control: Learn More

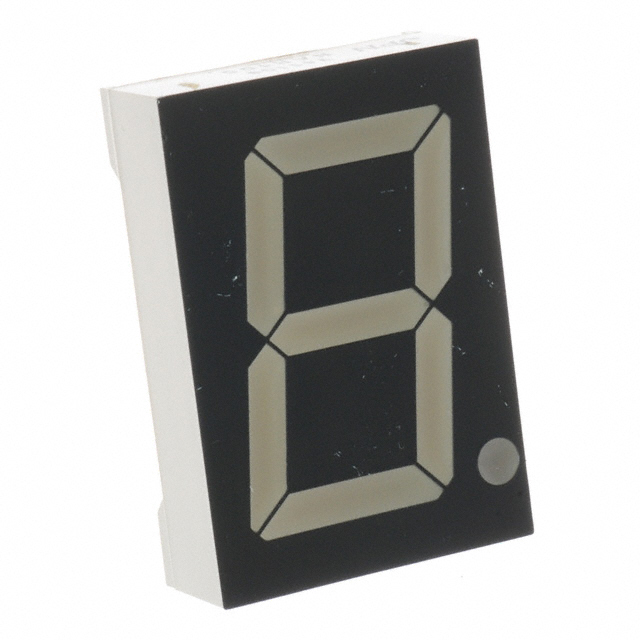

The Stanley Electric Co. NAR105-B is a 7-segment, single-digit numeric display module. This component features a 1.00-inch character height in a vibrant red LED color. Designed with a common anode configuration, it operates with a typical forward voltage of 3.4V and a test current of 20mA, yielding a luminous intensity of 20mcd. The module is housed in a 14-DIP package, providing a distinct mechanical interface for board mounting. Its dimensions are 1.299 inches high by 0.898 inches wide by 0.354 inches deep. This display is commonly utilized in industrial control panels, instrumentation, and point-of-sale systems where clear numeric indication is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-DIP |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 1.299"" H x 0.898"" W x 0.354"" D (33.00mm x 22.80mm x 9.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 20mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 1.00"" (25.40mm) |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 120mW |
