NAG105PB
DISPLAY 7-SEG 1"" SGL GREEN 14DIPManufacturer: Stanley Electric Co
Categories: LED Character and Numeric
Quality Control: Learn More

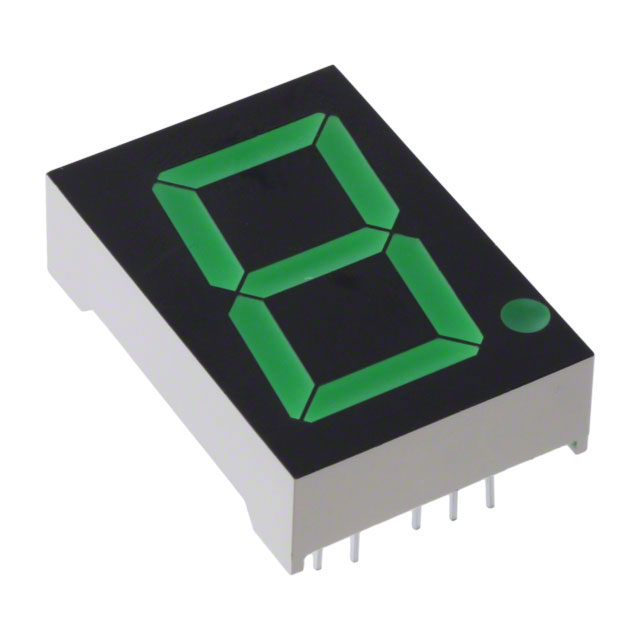

Stanley Electric Co NAG105PB is a single-digit, 7-segment numeric display module featuring a prominent 1.00-inch character height in a vibrant green hue. This component utilizes a common anode configuration, operating with a typical forward voltage of 4.4V and a test current of 20mA, yielding a luminous intensity of 8mcd. The module is housed in a 14-DIP package, measuring 1.299 inches in height, 0.898 inches in width, and 0.354 inches in depth, suitable for robust PCB integration. Its peak wavelength is 565nm, and it has a maximum power dissipation of 126mW. This display is commonly employed in industrial automation, medical instrumentation, and consumer electronics where clear numerical indication is critical. The NAG105PB is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-DIP |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 1.299"" H x 0.898"" W x 0.354"" D (33.00mm x 22.80mm x 9.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 8mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 1.00"" (25.40mm) |
| Voltage - Forward (Vf) (Typ) | 4.4V |
| Current - Test | 20mA |
| Wavelength - Peak | 565nm |
| Power Dissipation (Max) | 126mW |
