968-039
SENSOR OZONE USB OUTPUTManufacturer: SPEC Sensors (a division of Interlink Electronics)
Categories: Gas Sensors
Quality Control: Learn More

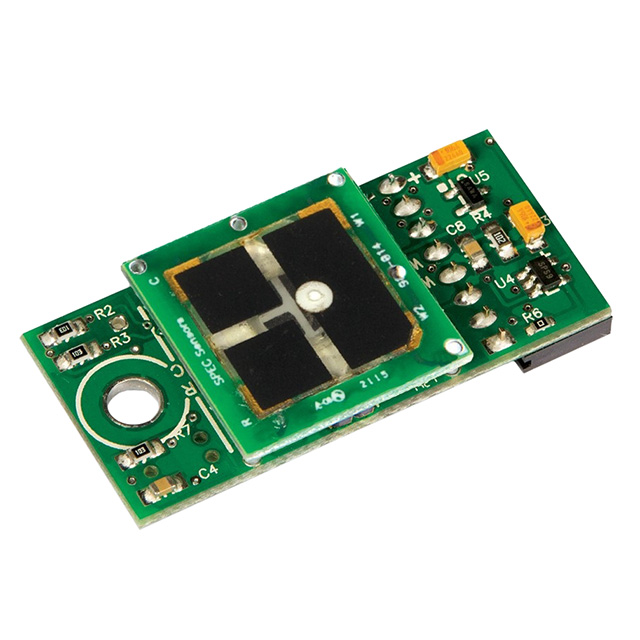

SPEC Sensors (a division of Interlink Electronics) 968-039 is an Ozone (O3) gas sensor module featuring a direct USB output. This component is designed for applications requiring precise ozone monitoring, including environmental sensing, air quality monitoring systems, and industrial process control where ozone levels are critical. The sensor operates with a supply voltage ranging from 2.6V to 3.6V and typically draws 4mA of current. It offers an accuracy of ±15% and functions within an operating temperature range of -20°C to 40°C. The integration of a USB interface simplifies data acquisition and connectivity in a variety of systems. This component is supplied in Bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=968-039&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Output | USB |
| Type | Ozone (O3) |
| Accuracy | ±15% |
| Operating Temperature | -20°C ~ 40°C |
| Voltage - Supply | 2.6V ~ 3.6V |
| Current - Supply | 4mA |
