COM-11120

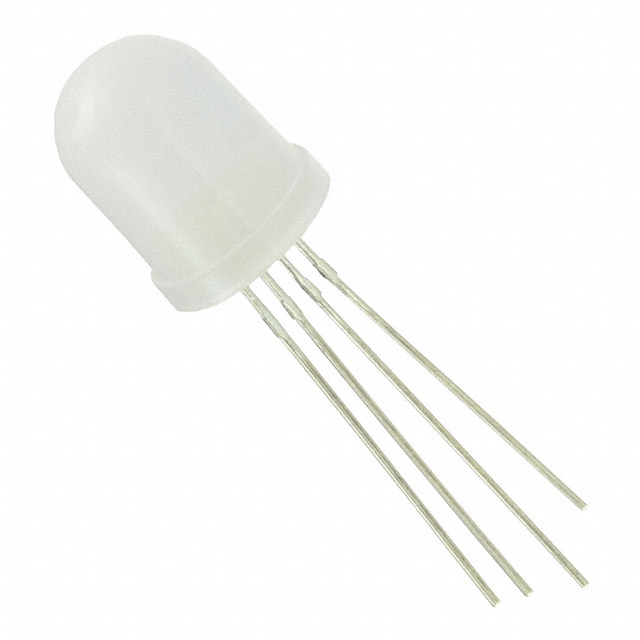

LED RGB DIFFUSED T/HManufacturer: SparkFun Electronics
Categories: LED Indication - Discrete
Quality Control: Learn More
Red, Green, Blue (RGB) 623nm Red, 518nm Green, 466nm Blue LED Indication - Discrete 2V Red, 3.2V Green, 3.1V Blue Radial - 4 Leads
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial - 4 Leads |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 550mcd Red, 250mcd Green, 700mcd Blue |
| Configuration | Common Cathode |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.2V Green, 3.1V Blue |
| Lens Color | White |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | - |
| Height (Max) | 13.20mm |
| Wavelength - Peak | 625nm Red, 520nm Green, 468nm Blue |
| Wavelength - Dominant | 623nm Red, 518nm Green, 466nm Blue |
| Supplier Device Package | - |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 10.00mm Dia |
