COM-09936
LED CBI 5X2.54MM 10-SEG YL VERTManufacturer: SparkFun Electronics
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

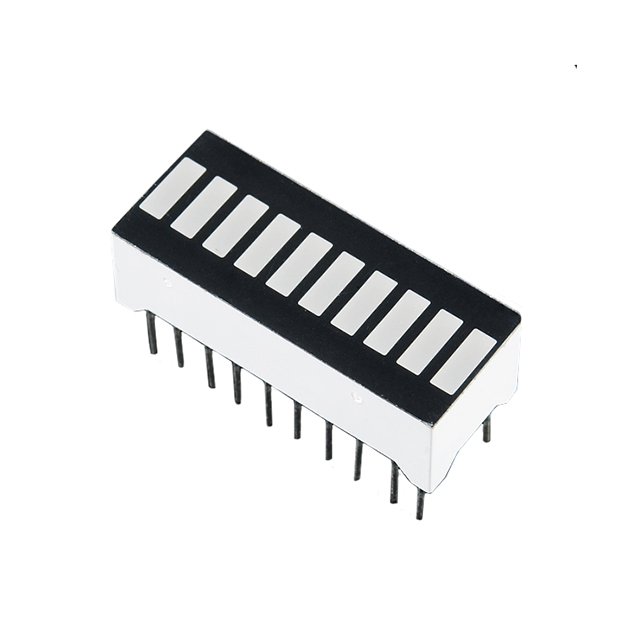

SparkFun Electronics COM-09936 is a 10-segment yellow LED bar graph component. This through-hole mounted device features individual LEDs with a 2.1V forward voltage and 20mA current rating, delivering a typical 55mcd luminous intensity. The rectangular lens style with a flat top measures 5.00mm x 2.54mm. Designed for straightforward integration onto printed circuit boards, this component is suitable for applications requiring visual status indication and level monitoring across various industrial and consumer electronics sectors. The DIP package facilitates easy assembly during the manufacturing process.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Yellow (x 10) |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole |
| Millicandela Rating | 55mcd |
| Configuration | Bar - 10 Wide, DIP |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 592nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.00mm x 2.54mm |
