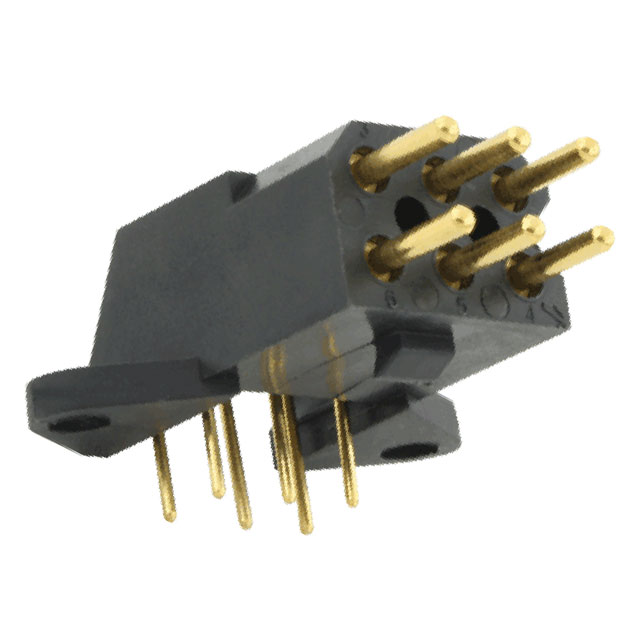

SMS6GE6
CONN HEADER R/A 6POS 5.08MMManufacturer: Souriau-Sunbank by Eaton
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 6 position 0.200"" (5.08mm)
Additional Information
Series: SMSRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mounting Flange |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 7.5A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.200"" (5.08mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 16.0µin (0.41µm) |
| Contact Finish - Post | - |
| Contact Shape | Circular |
| Contact Length - Post | 0.177"" (4.50mm) |
| Insulation Height | 0.469"" (11.90mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | - |
| Insulation Material | Polyester, Glass Filled |
| Row Spacing - Mating | 0.200"" (5.08mm) |
| Contact Length - Mating | 0.280"" (7.11mm) |
