UTGX6JC1419S
CONN PLG HSG FMALE 19POS INLINEManufacturer: Souriau-Sunbank by Eaton
Categories: Circular Connector Housings
Quality Control: Learn More

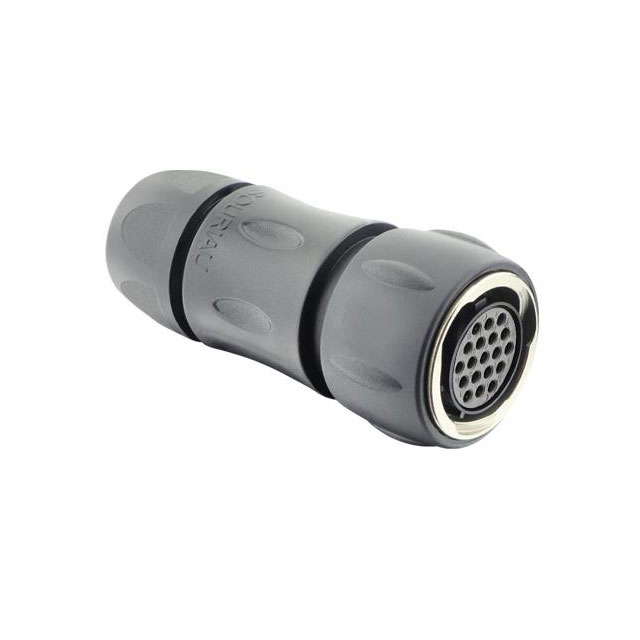

19 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut, UV Resistant
Additional Information
Series: UTGXRoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Backshell, Coupling Nut, UV Resistant |
| Packaging | Bag |
| Connector Type | Plug Housing |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Unshielded |
| Number of Positions | 19 |
| Type | For Female Sockets |
| Orientation | N (Normal) |
| Shell Size - Insert | 14-19 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Contact Size | 20 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Housing Color | Black |
| Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - |
