208107

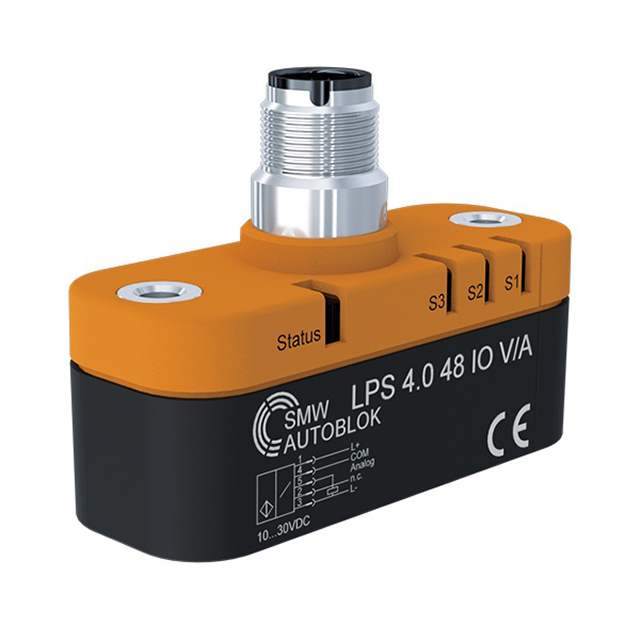

LPS 4.0 48 IO 4-20MA INDUCTIVE PManufacturer: SMW
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
Inductive Sensor Linear Position Slotted Shaft Cable with Connector
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Output | 4mA ~ 20mA |
| Operating Temperature | 10°C ~ 60°C |
| Termination Style | Cable with Connector |
| Voltage - Supply | 24V |
| Linearity | ±0.2% |
| Linear Range | 0 ~ 48.00mm (0 ~ 1.89"") |
| Actuator Type | Slotted Shaft |
| Technology | Inductive |
| Resistance Tolerance | - |
| For Measuring | Linear Position |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | - |
| Output Signal | - |
| Programmable | - |
