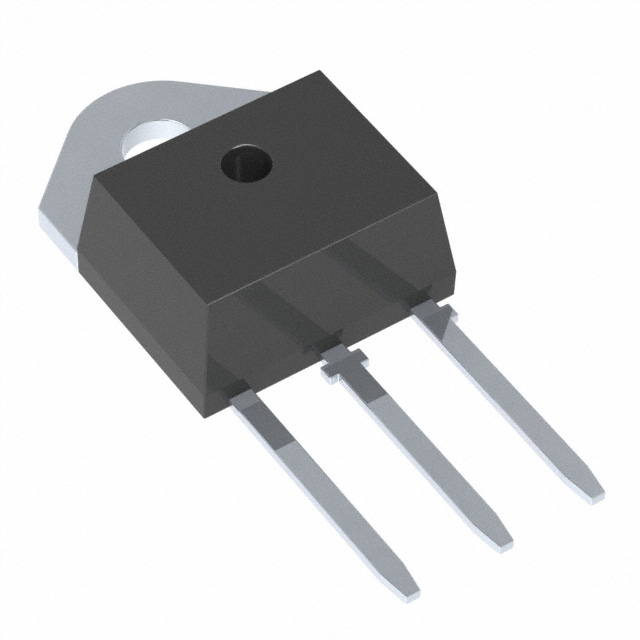

SST41Z-800B
TRIAC 800V 40A TO3PManufacturer: SMC Diode Solutions
Categories: TRIACs
Quality Control: Learn More
TRIAC Standard 800 V 40 A Through Hole TO-3P Insulated
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-3P-3, SC-65-3 |
| Mounting Type | Through Hole |
| Triac Type | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 80 mA |
| Current - Gate Trigger (Igt) (Max) | 70 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 400A @ 50Hz |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | TO-3P Insulated |
| Current - On State (It (RMS)) (Max) | 40 A |
| Voltage - Off State | 800 V |
