SFC3005A
DIODE SCHOTTKY 30V 500MA 2WLCSPManufacturer: SMC Diode Solutions
Categories: Single Diodes
Quality Control: Learn More

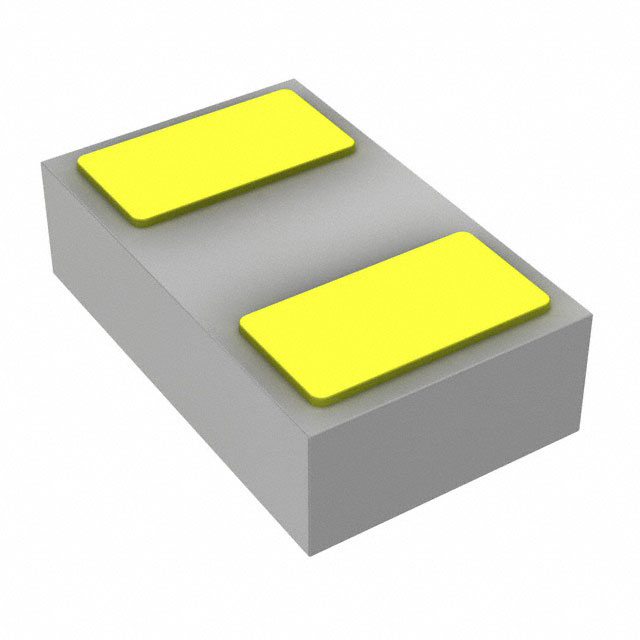

SMC Diode Solutions SFC3005A is a Schottky barrier rectifier in a 2-WLCSP (1x0.6) package. This surface mount component offers a maximum DC reverse voltage of 30V and an average rectified current capability of 500mA. The forward voltage drop is a maximum of 800mV at 500mA. Reverse leakage current is rated at 10µA at 30V. The device exhibits a junction operating temperature up to 150°C. Its low capacitance of 11pF at 5V and 1MHz makes it suitable for high-frequency applications. The SFC3005A is commonly utilized in power management, battery charging circuits, and general-purpose rectification across consumer electronics and industrial automation. It is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1006 Metric) |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 11pF @ 5V, 1MHz |
| Current - Average Rectified (Io) | 500mA |
| Supplier Device Package | 2-WLCSP (1x0.6) |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 500 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 30 V |
