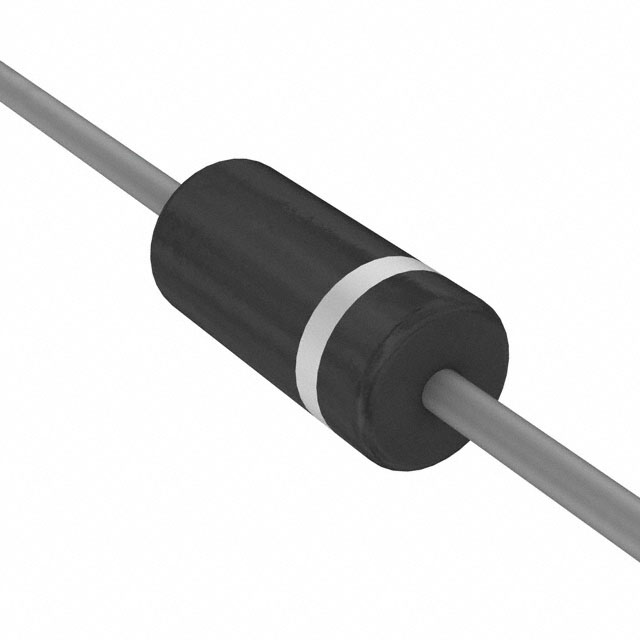

SB2100
DIODE SCHOTTKY 100V DO15Manufacturer: SMC Diode Solutions
Categories: Single Diodes
Quality Control: Learn More
Diode 100 V Through Hole DO-15
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | DO-204AC, DO-15, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 140pF @ 5V, 1MHz |
| Current - Average Rectified (Io) | - |
| Supplier Device Package | DO-15 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 500 µA @ 100 V |
