S125U
DIODE SCHOTTKY 250V 1A SMAFManufacturer: SMC Diode Solutions
Categories: Single Diodes
Quality Control: Learn More

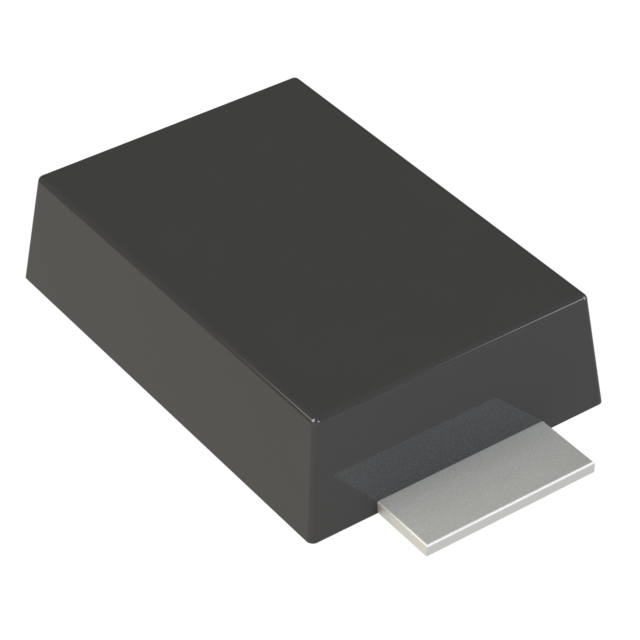

SMC Diode Solutions S125U is a 250V, 1A Schottky barrier rectifier in an SMAF (DO-221AC) package. This surface mount component features a low forward voltage drop of 920mV at 1A and a reverse leakage current of 50µA at 250V. With a junction operating temperature range of -55°C to 150°C and a capacitance of 28pF at 4V, 1MHz, the S125U is suitable for power supply, automotive, and industrial applications. It is supplied on tape and reel. Its fast recovery speed is rated at less than 500ns for currents greater than 200mA.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-221AC, SMA Flat Leads |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 28pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | SMAF |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 250 V |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 250 V |
