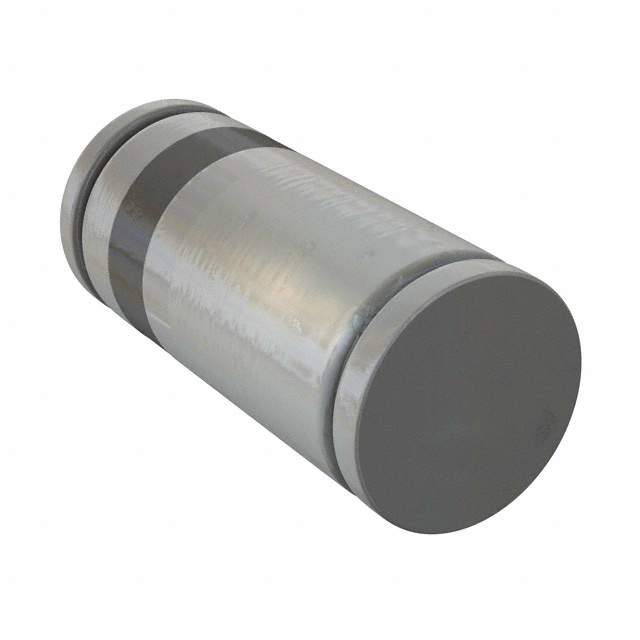

LL4148
DIODE GP 75V 300MA MINI MELFManufacturer: SMC Diode Solutions
Categories: Single Diodes
Quality Control: Learn More
Diode 75 V 300mA Surface Mount Mini MELF/DL-35
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AA |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 300mA |
| Supplier Device Package | Mini MELF/DL-35 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 75 V |
