SX014CR
SCR 900V 1.25A TO92CRManufacturer: SMC Diode Solutions
Categories: SCRs
Quality Control: Learn More

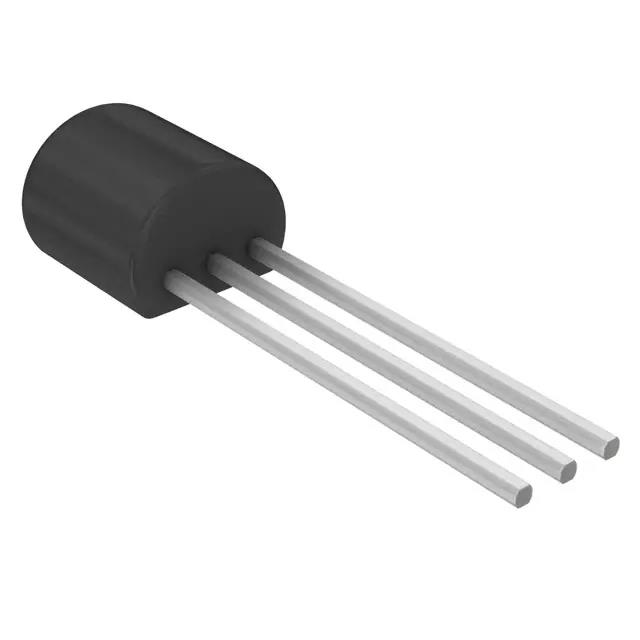

SCR 900 V 1.25 A Sensitive Gate Through Hole TO-92
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Mounting Type | Through Hole |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 110°C (TJ) |
| Current - Hold (Ih) (Max) | 4 mA |
| Current - Gate Trigger (Igt) (Max) | 200 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 20A @ 50Hz |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 1.5 V |
| Current - Off State (Max) | 5 µA |
| Supplier Device Package | TO-92 |
| Current - On State (It (RMS)) (Max) | 1.25 A |
| Voltage - Off State | 900 V |
