SCT151B-650R
SCR 650V 12A TO220BManufacturer: SMC Diode Solutions
Categories: SCRs
Quality Control: Learn More

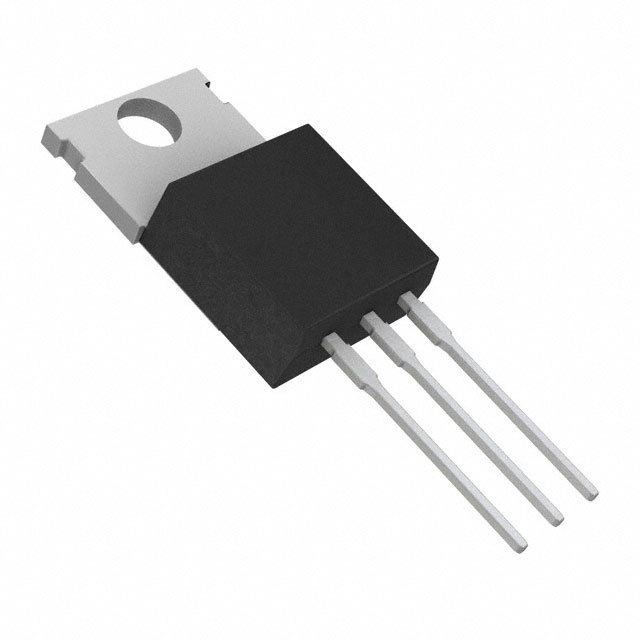

SMC Diode Solutions SCT151B-650R is a standard recovery Silicon Controlled Rectifier (SCR) rated for 650V and 12A RMS. This through-hole component features a TO-220B package. Key electrical parameters include a maximum gate trigger current (Igt) of 15 mA and a maximum gate trigger voltage (Vgt) of 1.5V. The device exhibits a maximum off-state current of 10 µA and a holding current (Ih) of 30 mA. It can withstand a non-repetitive surge current of 120A at 50Hz. The on-state voltage drop (Vtm) is a maximum of 1.6V. This component is suitable for applications in industrial power control and motor drives, operating within a temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 30 mA |
| Current - Gate Trigger (Igt) (Max) | 15 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 120A @ 50Hz |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - Off State (Max) | 10 µA |
| Supplier Device Package | TO-220B |
| Current - On State (It (RMS)) (Max) | 12 A |
| Voltage - Off State | 650 V |
