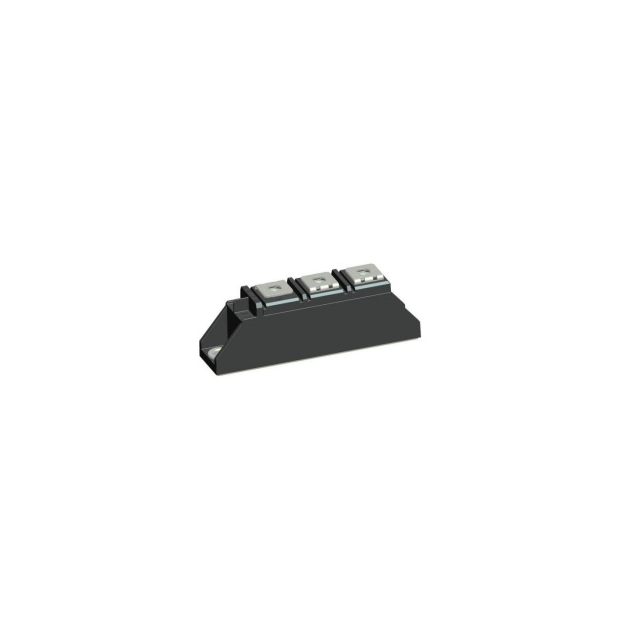

SM090KD800G1
DIODE MODULE GP 800V 100A T1Manufacturer: SMC Diode Solutions
Categories: Diode Arrays
Quality Control: Learn More
Diode Array 1 Pair Series Connection 800 V 100A Chassis Mount Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 100A |
| Supplier Device Package | T1 |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 800 V |
| Voltage - Forward (Vf) (Max) @ If | 1.15 V @ 100 A |
| Current - Reverse Leakage @ Vr | 20 µA @ 800 V |
