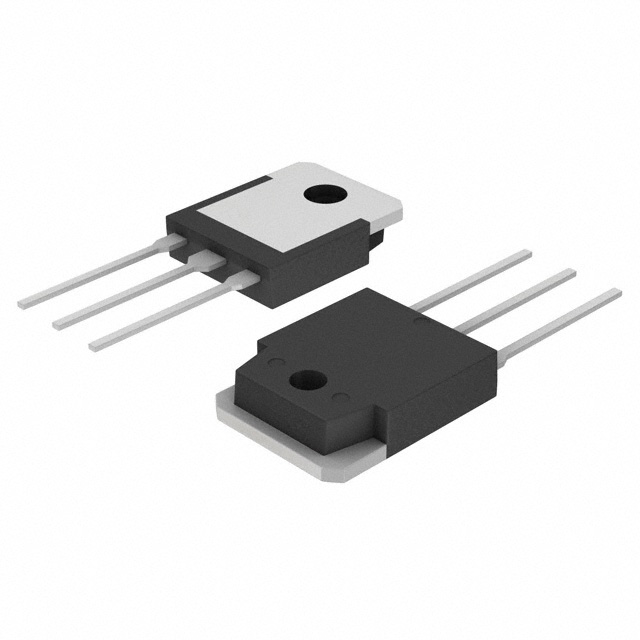

SDUR6030PT
DIODE ARRAY GP 600V TO3PManufacturer: SMC Diode Solutions
Categories: Diode Arrays
Quality Control: Learn More
SMC Diode Solutions SDUR6030PT is a dual diode array featuring a common cathode configuration. This component offers a repetitive peak reverse voltage (Vrrm) of 600V and a maximum forward voltage (Vf) of 1.8V at 15A. The reverse leakage current is a low 10 µA at 600V. With a fast reverse recovery time (trr) of 60 ns, it is suitable for applications requiring efficient switching. The device is housed in a TO-3P-3, SC-65-3 package for through-hole mounting, operating across a junction temperature range of -55°C to 150°C. This diode array is commonly utilized in power supply rectification, motor control, and industrial power conversion systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-3P-3, SC-65-3 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 60 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | - |
| Supplier Device Package | TO-3P |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 15 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
