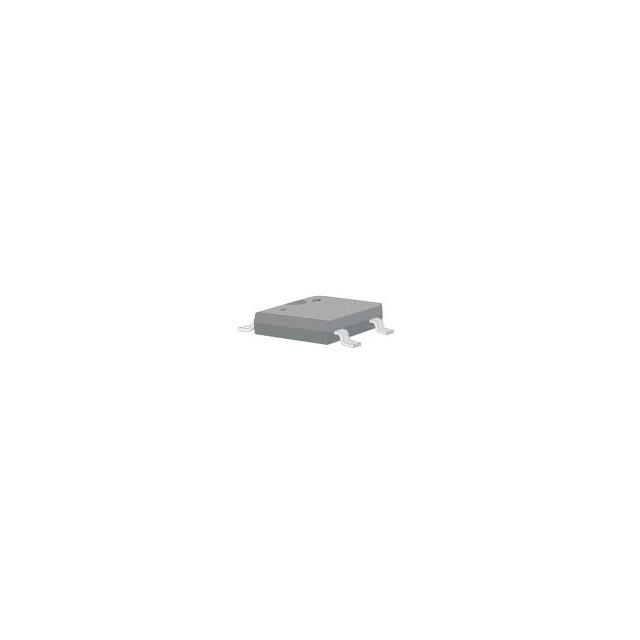

FTB1F-15F
BRIDGE RECT 1PHASE 100V 1.5A ABFManufacturer: SMC Diode Solutions
Categories: Bridge Rectifiers
Quality Control: Learn More
SMC Diode Solutions FTB1F-15F is a single-phase bridge rectifier designed for efficient power conversion. This standard technology component offers a 1.5 A average rectified current (Io) capability with a maximum reverse leakage of 5 µA at 100 V. Featuring a surface mount configuration in a 4-SMD, Gull Wing package (ABF), it is optimized for automated assembly. The forward voltage (Vf) is a maximum of 1.3 V at 1.5 A, and the peak reverse voltage is rated at 100 V. Operating within an ambient temperature range of -55°C to 150°C (TJ), this rectifier finds application in consumer electronics and industrial control systems. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | ABF |
| Voltage - Peak Reverse (Max) | 100 V |
| Current - Average Rectified (Io) | 1.5 A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1.5 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V |
