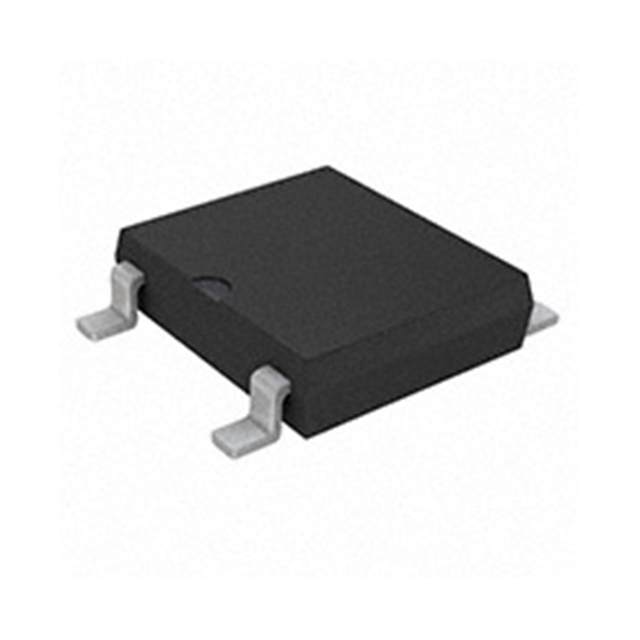

ABF22
BRIDGE RECT 1PHASE 200V 2A ABFManufacturer: SMC Diode Solutions
Categories: Bridge Rectifiers
Quality Control: Learn More
SMC Diode Solutions ABF22 is a single-phase bridge rectifier designed for robust performance in demanding applications. This standard silicon rectifier offers a 200V PIV rating and a 2A average forward current capability. Featuring a low forward voltage drop of 1V at 2A and a minimal reverse leakage current of 5µA at 200V, it ensures efficient power conversion. The ABF22 is housed in a 4-SMD, Gull Wing package for surface mount assembly, utilizing the Supplier Device Package designation ABF. Its operating temperature range of -55°C to 150°C (TJ) makes it suitable for use in industrial, automotive, and consumer electronics sectors. The component is supplied on tape and reel (TR) for automated manufacturing processes.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | ABF |
| Voltage - Peak Reverse (Max) | 200 V |
| Current - Average Rectified (Io) | 2 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 2 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
