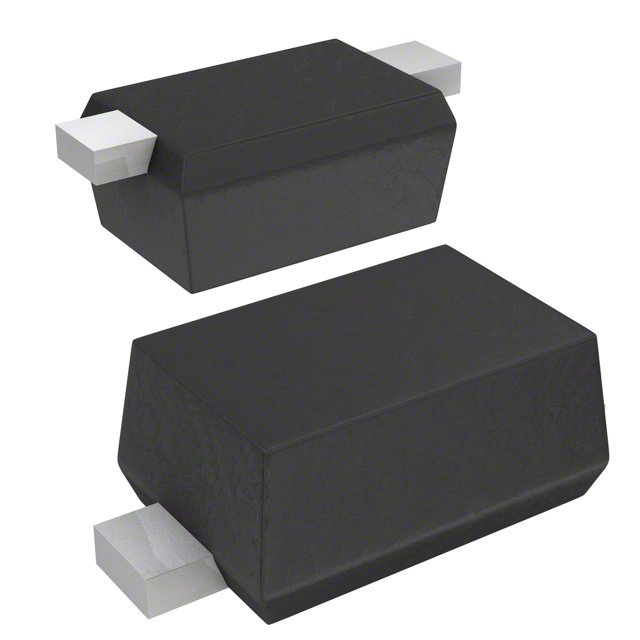

SMV1430-079LF
DIODE VARACTOR 30V 20MA SC79Manufacturer: Skyworks Solutions Inc.
Categories: Variable Capacitance (Varicaps, Varactors)
Quality Control: Learn More
Skyworks Solutions Inc. SMV1430-079LF is a single varactor diode designed for precision tuning applications. This surface-mount component, packaged in an SC-79 (SOD-523) case, offers a maximum reverse voltage of 30V and handles up to 20mA. At 4V and 50MHz, it exhibits a nominal capacitance of 0.7pF with a capacitance ratio (C0/C30) of 3.8. The high Q factor of 1680 at 4V, 50MHz ensures excellent performance in demanding RF circuits. Operating across a wide temperature range of -55°C to 125°C, this varactor is suitable for use in wireless communication systems, satellite equipment, and test and measurement instrumentation. The SMV1430-079LF is supplied on tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-79, SOD-523 |
| Mounting Type | Surface Mount |
| Diode Type | Single |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Capacitance @ Vr, F | 0.7pF @ 4V, 50MHz |
| Q @ Vr, F | 1680 @ 4V, 50MHz |
| Capacitance Ratio Condition | C0/C30 |
| Supplier Device Package | SC-79 |
| Voltage - Peak Reverse (Max) | 30 V |
| Capacitance Ratio | 3.8 |
