SMV1408-001LF
IC DIODE VARACTOR SOT23Manufacturer: Skyworks Solutions Inc.
Categories: Variable Capacitance (Varicaps, Varactors)
Quality Control: Learn More

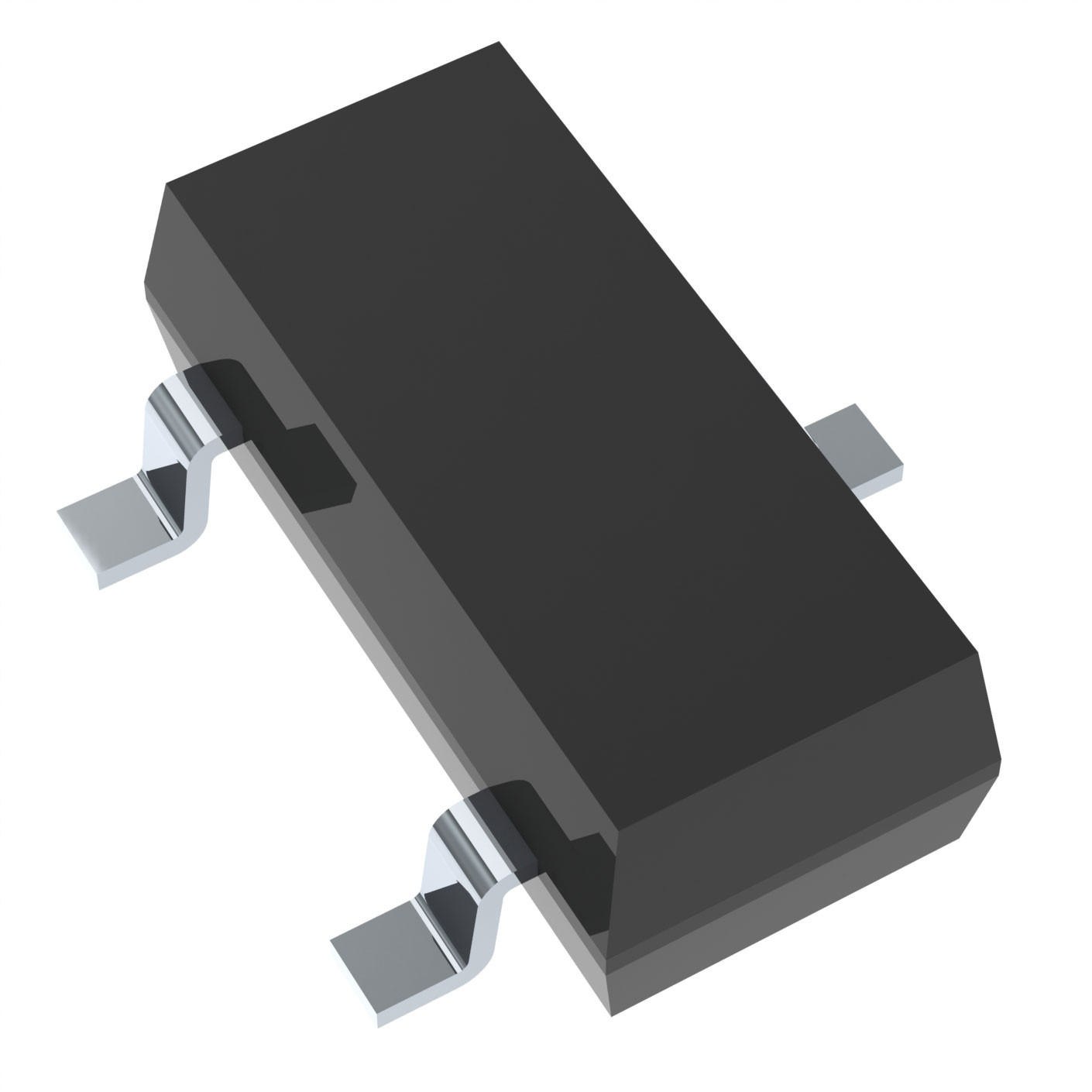

Skyworks Solutions Inc. SMV1408-001LF is a single varactor diode designed for surface mount applications. This component, housed in a SOT-23-3 package, offers a capacitance of 2.11 pF at 4V and 50MHz, with a capacitance ratio of 4.1 (C0/C30). It features a maximum reverse voltage rating of 30V and a high Q factor of 2900 at 4V, 50MHz, indicating excellent linearity for RF applications. The operating temperature range is -55°C to 125°C. This device is suitable for use in mobile infrastructure, satellite communications, and point-to-point radio systems. Available in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Diode Type | Single |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Capacitance @ Vr, F | 2.11pF @ 4V, 50MHz |
| Q @ Vr, F | 2900 @ 4V, 50MHz |
| Capacitance Ratio Condition | C0/C30 |
| Supplier Device Package | SOT-23-3 |
| Voltage - Peak Reverse (Max) | 30 V |
| Capacitance Ratio | 4.1 |
