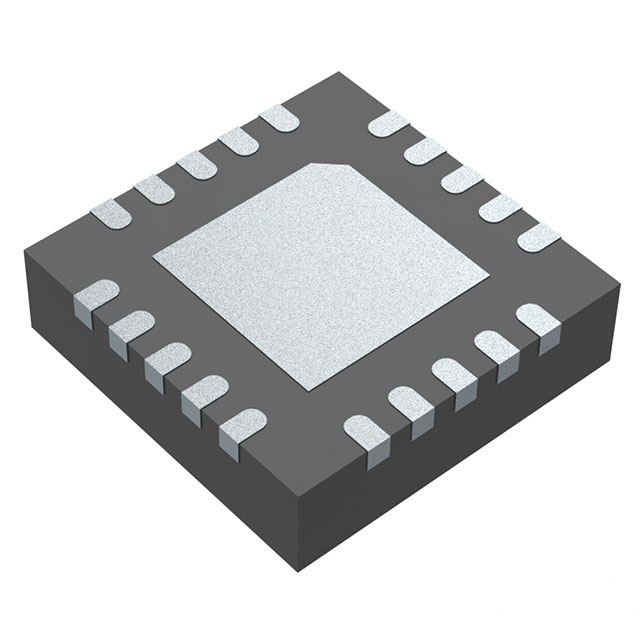

SKY13562-670LF

RF SWITCH ICS 2.5X2.5 SP10T DUAL

Manufacturer: Skyworks Solutions Inc.

Categories: RF Switches

Quality Control: Learn More

RF Switch IC 2G/3G/4G, CDMA2000, Cellular, EDGE, GSM, LTE, TD-SCDMA SP10T 50Ohm 20-QFN (2.5x2.5)

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
FeaturesDC Blocked
PackagingTape & Reel (TR)
Package / Case20-WFQFN Exposed Pad
Impedance50Ohm
Mounting TypeSurface Mount
CircuitSP10T
RF Type2G/3G/4G, CDMA2000, Cellular, EDGE, GSM, LTE, TD-SCDMA
Operating Temperature-30°C ~ 90°C
Voltage - Supply2.5V ~ 4.8V
Insertion Loss1.25dB
Frequency Range400MHz ~ 2.7GHz
Topology-
P1dB-
Test Frequency2.69GHz
Isolation20dB
Supplier Device Package20-QFN (2.5x2.5)
IIP3-
