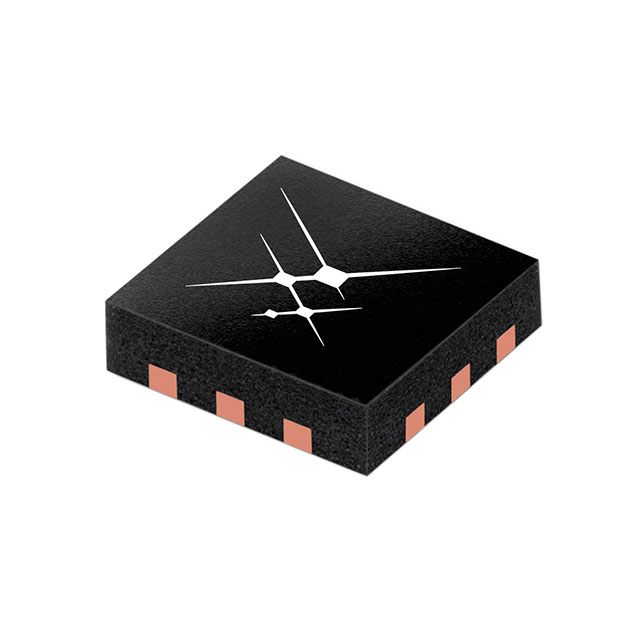

SKY13548-385LF

IC RF SWITCH SPDT 1.8GHZ 6QFN

Manufacturer: Skyworks Solutions Inc.

Categories: RF Switches

Quality Control: Learn More

Skyworks Solutions Inc. SKY13548-385LF is a Single Pole Double Throw (SPDT) RF switch designed for operation from 5MHz to 1.8GHz. This surface mount component features a 75 Ohm impedance characteristic and is housed in a compact 6-QFN (1x1) package. With an insertion loss of 0.4dB and isolation of 25dB at 900MHz, it is suitable for demanding RF applications. This device is commonly employed in wireless infrastructure, mobile devices, and base stations. The SKY13548-385LF is supplied on tape and reel.

Additional Information

Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 18 week(s)Product Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
Features-
PackagingTape & Reel (TR)
Package / Case6-XFQFN
Impedance75Ohm
Mounting TypeSurface Mount
CircuitSPDT
RF Type-
Operating Temperature-
Voltage - Supply-
Insertion Loss0.4dB
Frequency Range5MHz ~ 1.8GHz
Topology-
P1dB-
Test Frequency900MHz
Isolation25dB
Supplier Device Package6-QFN (1x1)
IIP3-
