SKY13353-337LF
IC RF SWITCH DPDT 3GHZ 12QFNManufacturer: Skyworks Solutions Inc.
Categories: RF Switches
Quality Control: Learn More
Skyworks Solutions Inc. SKY13353-337LF is a Double Pole Double Throw (DPDT) RF switch IC designed for high-performance wireless applications. Operating across a frequency range of 500MHz to 3GHz, this 802.11a/n compliant component features a 50 Ohm impedance and a reflective topology. Key performance metrics include an Insertion Loss of 0.8dB and an Isolation of 18dB, both specified at 3GHz. The device exhibits an IIP3 of 52dBm and a P1dB of 36dBm, suitable for demanding signal paths. Packaged in a 12-QFN (3x3) with an exposed pad, it is designed for surface mounting and operates within a temperature range of -40°C to 85°C. This component is commonly utilized in Wi-Fi infrastructure and mobile device front-ends.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |

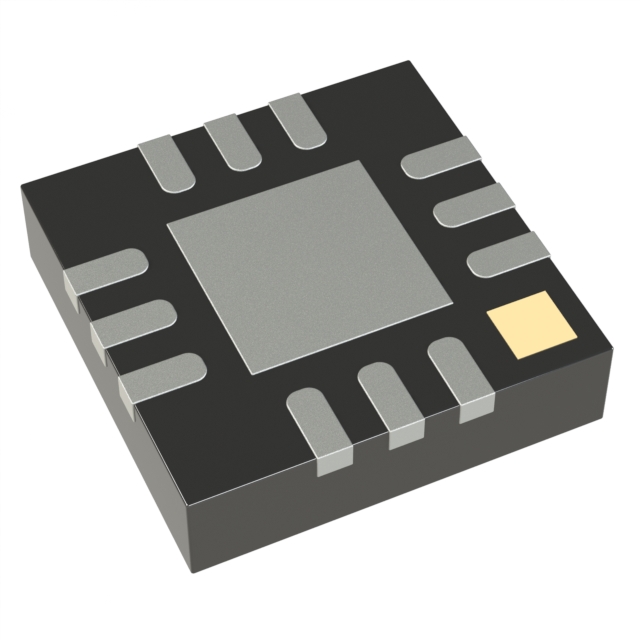

| Package / Case | 12-TFQFN Exposed Pad |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | DPDT |
| RF Type | 802.11a/n |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | - |
| Insertion Loss | 0.8dB |
| Frequency Range | 500MHz ~ 3GHz |
| Topology | Reflective |
| P1dB | 36dBm |
| Test Frequency | 3GHz |
| Isolation | 18dB |
| Supplier Device Package | 12-QFN (3x3) |
| IIP3 | 52dBm |
