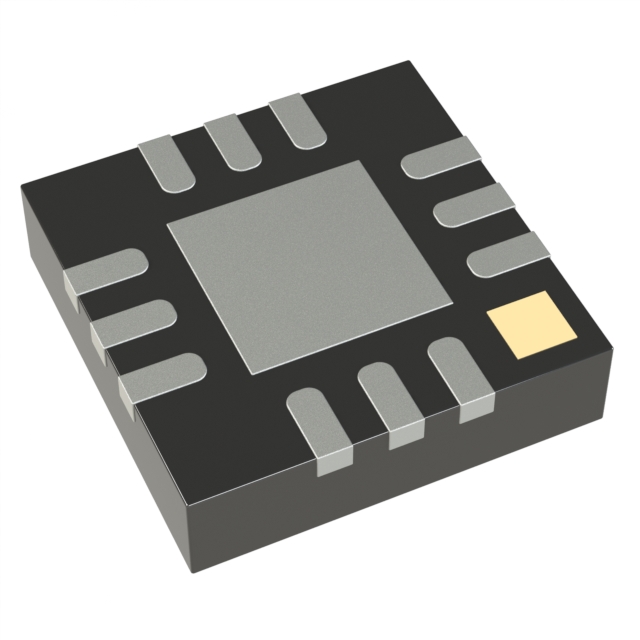

SKY13318-321LF

IC RF SWITCH DPDT 6GHZ 12QFN

Manufacturer: Skyworks Solutions Inc.

Categories: RF Switches

Quality Control: Learn More

Skyworks Solutions Inc. SKY13318-321LF is a Double Pole Double Throw (DPDT) RF switch designed for high-frequency applications up to 6 GHz. This reflective switch features low insertion loss of 1.15 dB and high isolation of 17 dB at its test frequency, ensuring efficient signal routing and minimal signal degradation. With a characteristic impedance of 50 Ohms, it is optimized for operation within wireless communication systems, including those adhering to 802.11b standards. The device offers a P1dB of 34 dBm and an IIP3 of 57 dBm, indicating robust performance under demanding signal conditions. Packaged in a compact 12-QFN (3x3) with an exposed pad for enhanced thermal management, the SKY13318-321LF is suitable for surface mount applications. Its operating temperature range of -40°C to 85°C makes it a reliable component for various industrial and consumer electronics sectors.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
Features-
PackagingTape & Reel (TR)
Package / Case12-WFQFN Exposed Pad
Impedance50Ohm
Mounting TypeSurface Mount
CircuitDPDT
RF Type802.11b
Operating Temperature-40°C ~ 85°C
Voltage - Supply-
Insertion Loss1.15dB
Frequency RangeLF ~ 6GHz
TopologyReflective
P1dB34dBm
Test Frequency6GHz
Isolation17dB
Supplier Device Package12-QFN (3x3)
IIP357dBm
