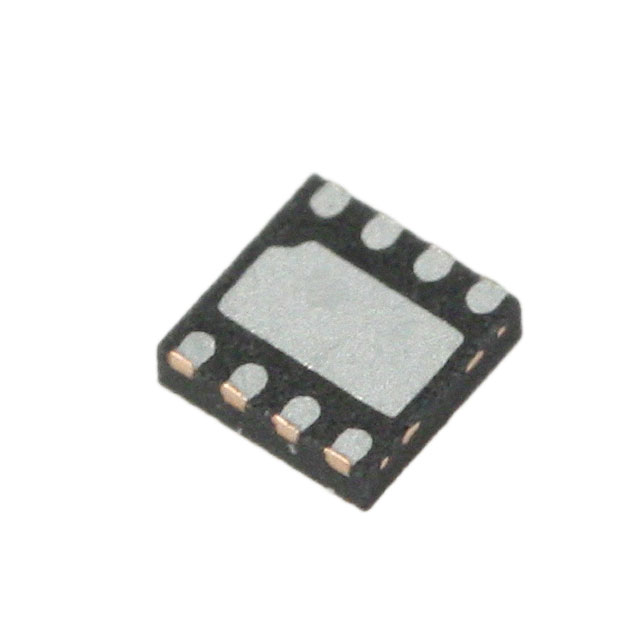

SKY13309-370LF

IC RF SWITCH SP3T 3GHZ 8MLP

Manufacturer: Skyworks Solutions Inc.

Categories: RF Switches

Quality Control: Learn More

Skyworks Solutions Inc. SKY13309-370LF is a Silicon SP3T RF switch designed for high-performance wireless applications. This component operates across a frequency range of 100 MHz to 3 GHz, offering a typical insertion loss of 0.5 dB and excellent isolation of 25 dB at 2.5 GHz. Key performance metrics include an IIP3 of 45 dBm and a P1dB of 29 dBm, ensuring robust signal integrity in demanding environments. The SKY13309-370LF features a 50 Ohm impedance and is housed in an 8-MLP (2x2) surface-mount package, supplied on tape and reel. Its reflective topology makes it suitable for use in Bluetooth and WLAN systems, commonly found in mobile devices and wireless infrastructure. The operating temperature range is -40°C to 85°C.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
Features-
PackagingTape & Reel (TR)
Package / Case8-UFDFN Exposed Pad
Impedance50Ohm
Mounting TypeSurface Mount
CircuitSP3T
RF TypeBluetooth, WLAN
Operating Temperature-40°C ~ 85°C
Voltage - Supply-
Insertion Loss0.5dB
Frequency Range100MHz ~ 3GHz
TopologyReflective
P1dB29dBm
Test Frequency2.5GHz
Isolation25dB
Supplier Device Package8-MLP (2x2)
IIP345dBm
