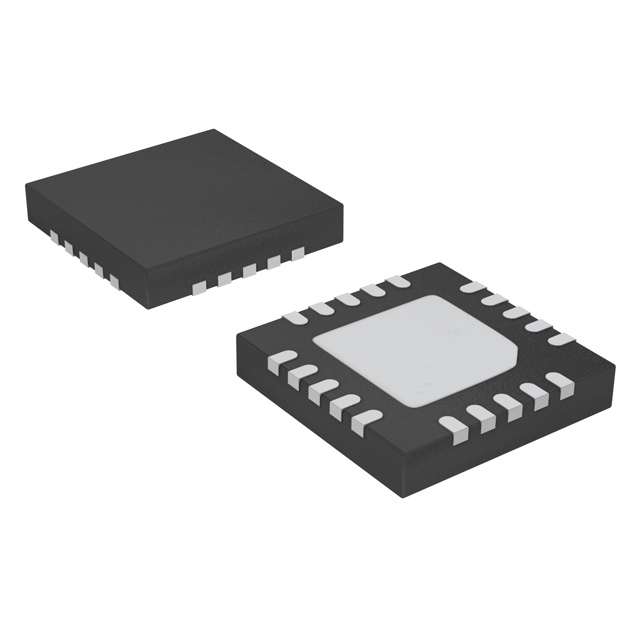

SKY13277-355LF

IC RF SWITCH SP3T 2.5GHZ 20QFN

Manufacturer: Skyworks Solutions Inc.

Categories: RF Switches

Quality Control: Learn More

The Skyworks Solutions Inc. SKY13277-355LF is a Single Pole Triple Throw (SP3T) RF switch designed for cellular applications. This absorptive switch operates across a frequency range of 500 MHz to 2.5 GHz, featuring a characteristic impedance of 50 Ohms. It offers an insertion loss of 1.3 dB and an isolation of 55 dB at its test frequency of 2.5 GHz. Key performance parameters include an IIP3 of 43 dBm and a P1dB of 30 dBm, all within an operating temperature range of -40°C to 85°C. The device is supplied in a 20-QFN (5x5) package, suitable for surface mounting, and is provided on tape and reel. This component is ideal for use in mobile infrastructure and wireless communication systems.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
Features-
PackagingTape & Reel (TR)
Package / Case20-VQFN Exposed Pad
Impedance50Ohm
Mounting TypeSurface Mount
CircuitSP3T
RF TypeCellular
Operating Temperature-40°C ~ 85°C
Voltage - Supply2.75V ~ 5.5V
Insertion Loss1.3dB
Frequency Range500MHz ~ 2.5GHz
TopologyAbsorptive
P1dB30dBm
Test Frequency2.5GHz
Isolation55dB
Supplier Device Package20-QFN (5x5)
IIP343dBm
