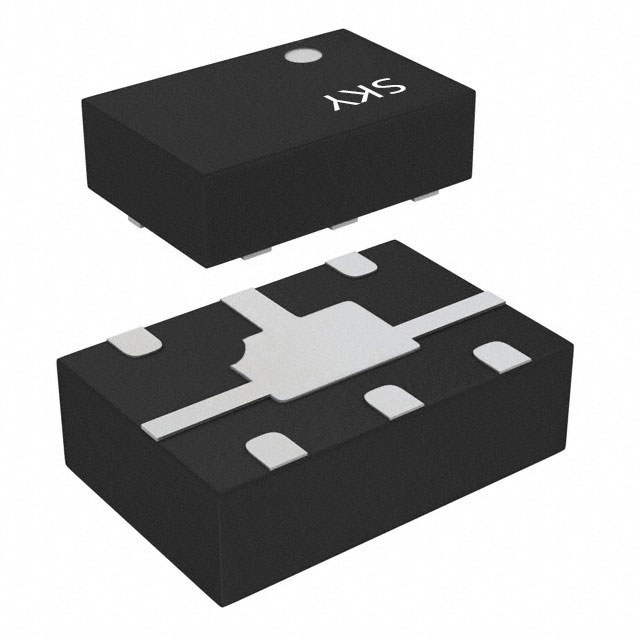

AS225-313LF
IC RF SWITCH SPDT 6GHZ 6DFNManufacturer: Skyworks Solutions Inc.
Categories: RF Switches
Quality Control: Learn More
Skyworks Solutions Inc. AS225-313LF is a single-pole double-throw (SPDT) RF switch designed for high-performance wireless applications. This component operates across a frequency range of 100 MHz to 6 GHz, supporting standards such as 802.11a/b/g/WiFi, and WLAN. Key performance metrics include an insertion loss of 0.6 dB and an isolation of 21 dB, with a P1dB of 34 dBm and an IIP3 of 55 dBm. The device features a 50 Ohm impedance and is packaged in a compact 6-DFN (2x3) surface-mount configuration, supplied on tape and reel. It is compatible with both 3V and 5V supply voltages, making it suitable for integration into portable electronics, wireless infrastructure, and other high-frequency systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-VDFN Exposed Pad |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SPDT |
| RF Type | 802.11a/b/g/WiFi, WLAN |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V, 5V |
| Insertion Loss | 0.6dB |
| Frequency Range | 100MHz ~ 6GHz |
| Topology | - |
| P1dB | 34dBm |
| Test Frequency | 5.85GHz |
| Isolation | 21dB |
| Supplier Device Package | 6-DFN (2x3) |
| IIP3 | 55dBm |
Request a Quote
