AS211-334
IC RF SWITCH SPDT 4GHZ 6LGAManufacturer: Skyworks Solutions Inc.
Categories: RF Switches
Quality Control: Learn More

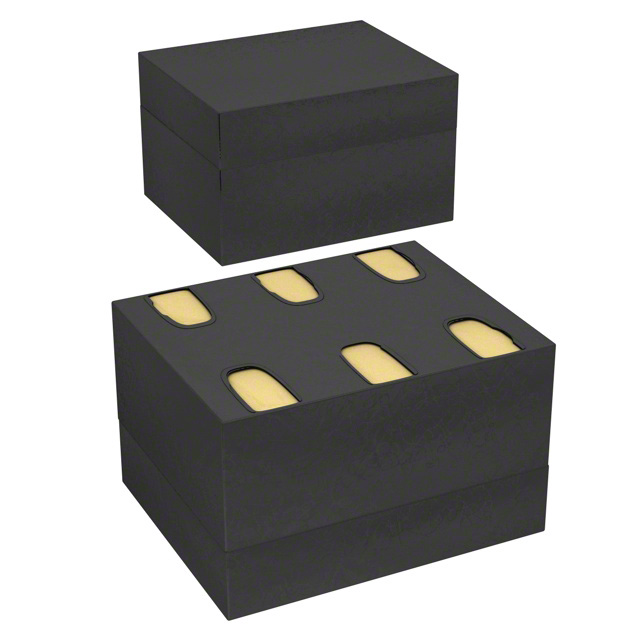

Skyworks Solutions Inc. AS211-334 is a single-pole, double-throw (SPDT) RF switch IC designed for general-purpose applications. This component operates from 100MHz to 4GHz with a characteristic impedance of 50 Ohms. Key performance metrics include a typical insertion loss of 0.6dB and an isolation of 26dB at 4GHz. It offers a P1dB of 34dBm and an IIP3 of 50dBm. The AS211-334 utilizes a reflective topology and is housed in a compact 6-VFLGA (1.5x1.2) package, suitable for surface mounting. It operates within an ambient temperature range of -40°C to 85°C and requires a 3V supply voltage. This RF switch is commonly found in wireless infrastructure, mobile devices, and broadband applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-VFLGA |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | SPDT |
| RF Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V |
| Insertion Loss | 0.6dB |
| Frequency Range | 100MHz ~ 4GHz |
| Topology | Reflective |
| P1dB | 34dBm |
| Test Frequency | 4GHz |
| Isolation | 26dB |
| Supplier Device Package | 6-LGA (1.5x1.2) |
| IIP3 | 50dBm |
